On-the-Machine CCD Imaging Measurement
On-the-Machine CCD Imaging Measurement System "NAGASE VISION"
「超精密研削盤」のナガセインテグレックス。超硬パンチなどの精密な小物金型部品の精密測定を成形研削盤上で実現する画期的なCCD画像測定ユニットをご紹介。
Realizes On-Machine CCD Imaging Measurement of Precision Parts such as Punches, Dies, Cores.

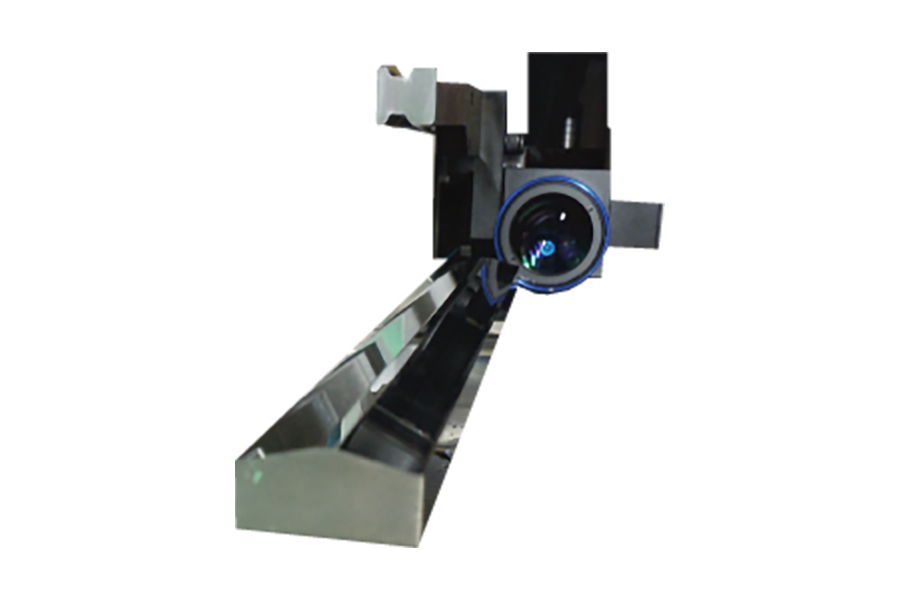

The on-machine CCD imaging measuring system was developed for highly efficient production of precision small die components such as carbide punches and dies and resin mold cores. "NAGASE VISION" is a revolutionary on-machine measuring system designed for high-reciprocating grinding machines that excel in machining efficiency, quality, and accuracy. It overcame the extremely difficult challenges of being mounted on a horizontal table in a wet environment to realize a CCD image measurement system with repeatable reproducibility and accuracy of ±1μm or less. For details, please contact our sales department.
Features
Measurement Accuracy and Functionality Capable of Processing to within 1μm.
≪Features of On-Machine CCD Imaging Measurement System≫
- This CCD image measuring system can be mounted on NAGASE's ultra-precision high-reciprocation grinding machines and other horizontal surface form grinding machines.
- This measuring system is ideal for highly efficient forming of small parts that require high precision, such as carbide stamping punches and dies for leadframes, connector terminals, and semiconductor encapsulation molds.

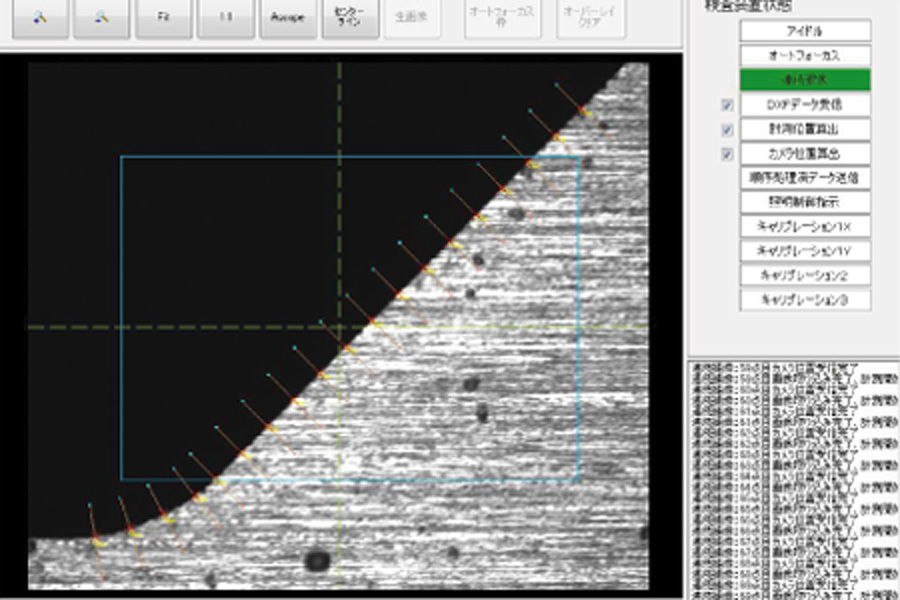

- The shape of the workpiece after machining can be checked by CCD image sensor. Measurement accuracy is ±1μm or less.
- In the future, NAGASE is developing a measuring system that can handle not only automatic measurement but also automatic correction processing.
- Please contact our sales staff for details on this system and its installation on new machines.
Inquiries
For further information, please contact us.We will make a proposal according to your requests.
Customers who are thinking of introducing new facilities are welcome to ask us for test machining or visit our factory. Please feel free to consult us. Please inform us of facility conditions, size and material of machining workpieces, machining time, etc. in detail. Depending on the contents of your request, sales personnel in your district will make a proposal to meet your requirements.
