ULTRA PRECISION FORCE AND POSITION SYNCHRONIZED CONTROL GRINDING MACHINE
NSF-W440・W5006面体の両平面を簡単に、短時間で超精密に研削加工。2面同時研削を行う超精密両頭研削盤NSF-W440・W500。
Chucking Is Not Necessary!?
Just Put It on the Carrier and It's Ultra-Precision!!
Machining is always performed under the best conditions and high flatness accuracy can be obtained.

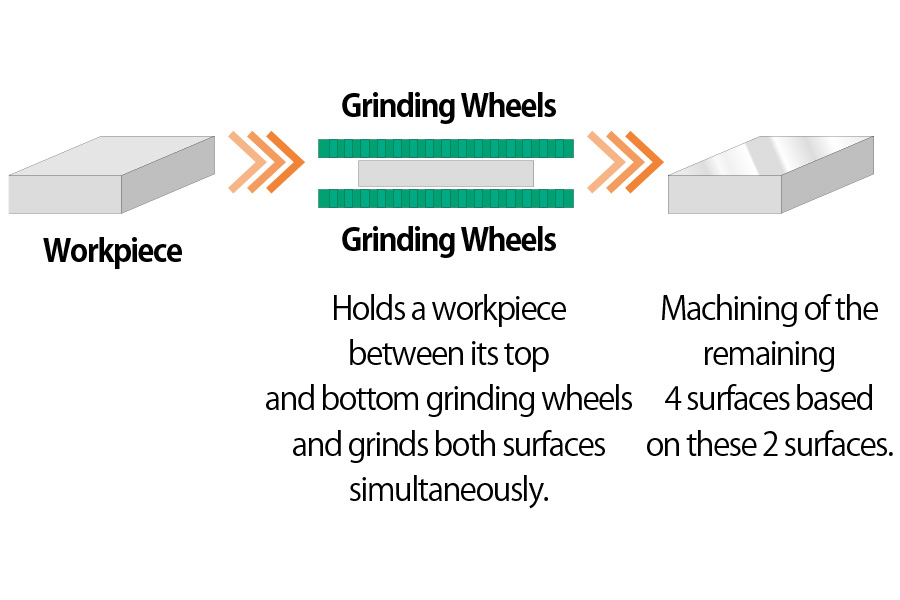

Machining of the two surfaces which is the standard of hexahedron machining.
Material: Alumina ceramics
Size: ⌀160 x 8mm
Flatness: 2.0μm/⌀160mm
Roughness: 2.44μmRz
Material: Alumina ceramics
Size: ⌀350 x 10mm
Flatness: 2.7μm/⌀350mm
Material: SiC
Size: 4inch x 5mm
Processing time: 100μm/50sec
Removal amount: 93%
Material: S45C
Size: ⌀100 x 10mm
Flatness: 0.91μm/⌀100mm
Roughness: 1.05μmRz
Material: SKD-11
Size: 100 x 100 x 10mm
Flatness: 1.89μm/100 x 100mm
Parallelism: 1.9μm
Material: SUS316L
Size: ⌀100 x 3mm
Warpage: 5μm,
Thickness irregularity: 3μm
It achieves ultra-precise grinding of two surfaces, which is the standard for machining hexahedrons, in a short time.It is also ideal for machining the end surfaces of parts that require flatness accuracy in the mounting area, such as bearings, piston rings, and gears.

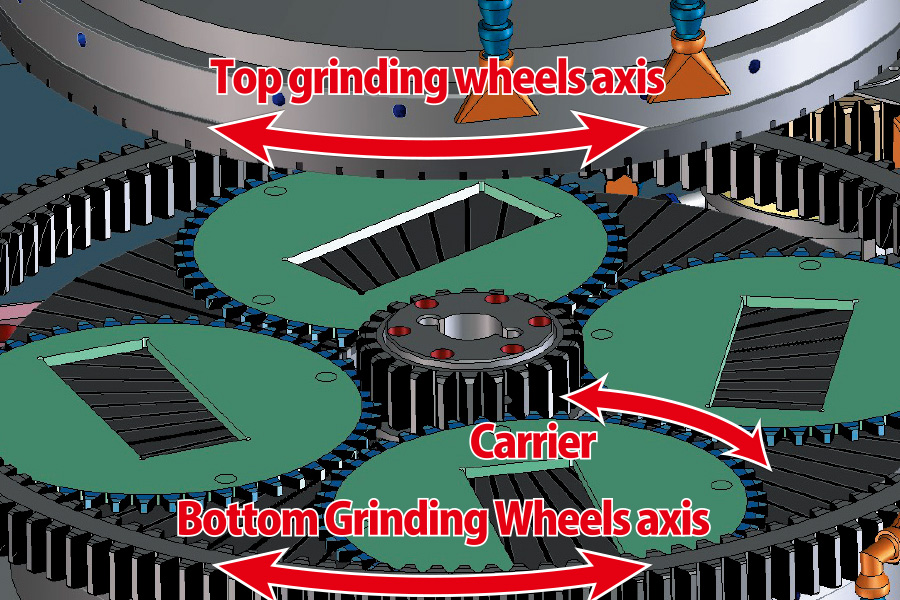

Setting is completed just by placing the workpiece in the carrier set on the bottom grinding wheel. There is no need to think about holding the workpiece or setting up the jig. Workpiece size can be up to a maximum area of ⌀170mm.
Non-contact oil hydrostatic bearings are used on both the top and bottom of the grinding wheel spindle. In addition, the machine body has a unique frame structure, which means that deformation caused by uneven loads is extremely small.
A constant-pressure and constant-amount complex control system is adopted to the top grinding wheel spindle. Pressure applied to the grinding wheel is always detected to control the amount of cutting and pressure. Machining in the best condition is constantly achieved.
The pressure applied to the grinding wheel is detected in real time, and the cutting pressure and cutting amount are controlled by NC.
By linking with an articulated robot (OP) that can supply and remove workpieces, unmanned operation is possible. It can also automatically supply and remove bearing spacer workpieces and ceramic workpieces.
By linking with an articulated robot, workpieces can be automatically supplied and removed.
| Machine/Items | Size | Max. Work Diameter |
Top Grinding Wheel Shaft Wheel Size (OD x W x ID) |
Max. Vertical Axis Travel of Top Grinding Wheel |
Min. unit set in Vertical Axis of Top Grinding Wheel |
|---|---|---|---|---|---|
| mm | mm | mm | mm | ||
| NSF-W | 440 | ⌀170(1 piece processing：φ410mm) | ⌀440 x 35 x ⌀140 | 200 | 0.0001 |
| 500 | ⌀205(1 piece processing：φ440mm) | ⌀500 x 45-50 x ⌀140 | 200 | 0.0001 |
Customers who are thinking of introducing new facilities are welcome to ask us for test machining or visit our factory. Please feel free to consult us. Please inform us of facility conditions, size and material of machining workpieces, machining time, etc. in detail. Depending on the contents of your request, sales personnel in your district will make a proposal to meet your requirements.
