Wheel Form Grinding
Machining Example of High-Reciprocating Forming Grinding Machine 2
「サブミクロンの形状精度」を追求できる研削盤はナガセインテグレックス。ハイレシプロ成形研削盤による超硬パンチ・ダイ、セラミックスの成形研削・コンタリング加工事例をご紹介します。
Once Formed, The Grinding Wheel Lasts Longer.
That is also a Feature of NAGASE.
Wheel form grinding(Wheel form machining) is a grinding process in which a grinding wheel is formed to match the required workpiece shape and the shape is transferred. Generally, plunge grinding or creep feed grinding is used. The challenge in the wheel form grinding process is how to minimize the out of shape of the mold of the grinding wheel once formed. NAGASE surface grinders have earned a reputation for "long-lasting grinding wheel life = high-precision machining" due to their high rigidity at the machining point, low vibration, and straightness accuracy.
Works

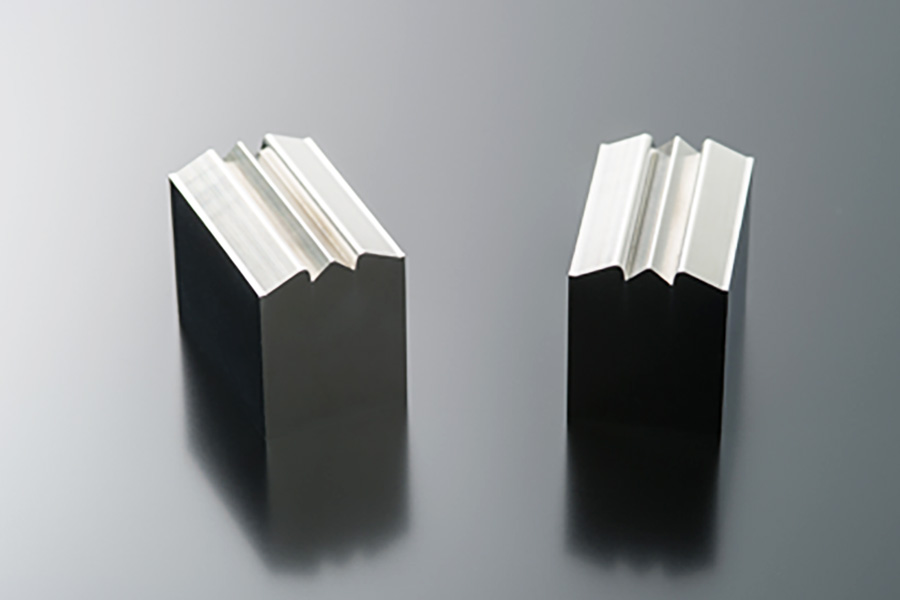

Wheel Form Grinding of STAVAX
(By High-Reciprocating Forming Grinder)
Form Accuracy: Less than ±1.0μm
Material: STAVAX
Size: 30 x 20 x 20mm
Machine: SHSD-80AL2S-PCnc
Wheel Form Grinding of SKD-11
(By High-Reciprocating Forming Grinder)
Form Accuracy: Less than ±1.0μm
Material: SKD-11
Size: 70 x 40 x 30mm
Machine: SHSD-80AL2S-PCnc

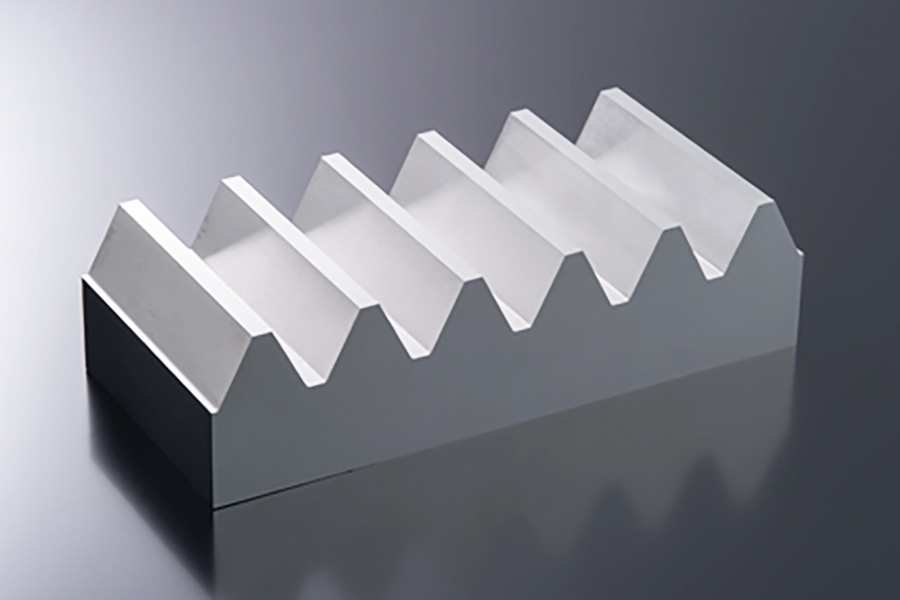

Wheel Form Grinding of HPM-38
(By Forming Surface Grinder)
Form Accuracy: Less than ±1.0μm
Material: HPM38
Size: 180 x 80 x 50mm
Machine: SGC-630αS4-Zero3
Wheel Form Grinding of SKD-11
(By Forming Surface Grinder)
Form Accuracy: Less than ±1.0μm
Material: SKD-11
Size: 50 x 25 x 25mm
Machine: SGC-630αS4-Zero3
