Bed Grinding
Grinding Example of Ultra Precision Double Column Surface Grinding Machine 1
世界最高の精度のベッド研削盤。ナガセインテグレックスの超精密門形静圧研削盤ORIGINseriesによる工作機械や半導体装置・産業用機械などの大型部品・ベッド研削加工の事例をご紹介。
Grind The Bed Finish of Machine Tools, Forging Machines, etc. with One Step Higher Accuracy.

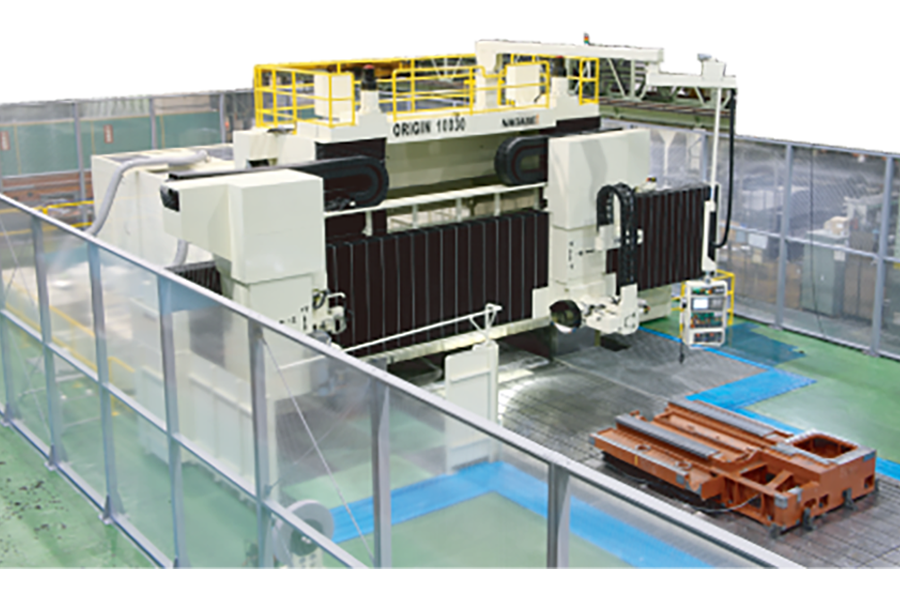

Bed grinding (bed machining) is the grinding of large workpieces such as the beds that make up the machine bodies of machine tools, forging machines, and semiconductor equipment. The "non-contact, multiple-restricted oil static slideway" with no friction and no deflection is most effective in the ultra-precision machining of large workpieces. Sub-micron straightness is achieved even for meter-size workpieces. It is capable of bed grinding with high repeatability, overwhelming accuracy and efficiency, and precision finishing of compound guideway surfaces.
Works

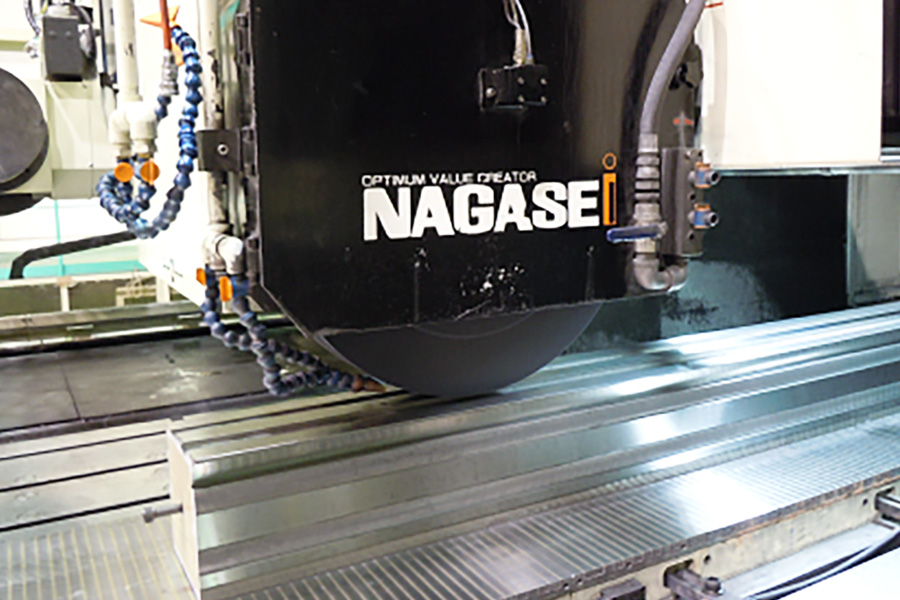

Bed Grinding (Cast metal)
Straightness: 0.86μm/2m
Material: Cast metal
Size: 220 x 220 x 2000mm
Machine: ORIGIN-10025

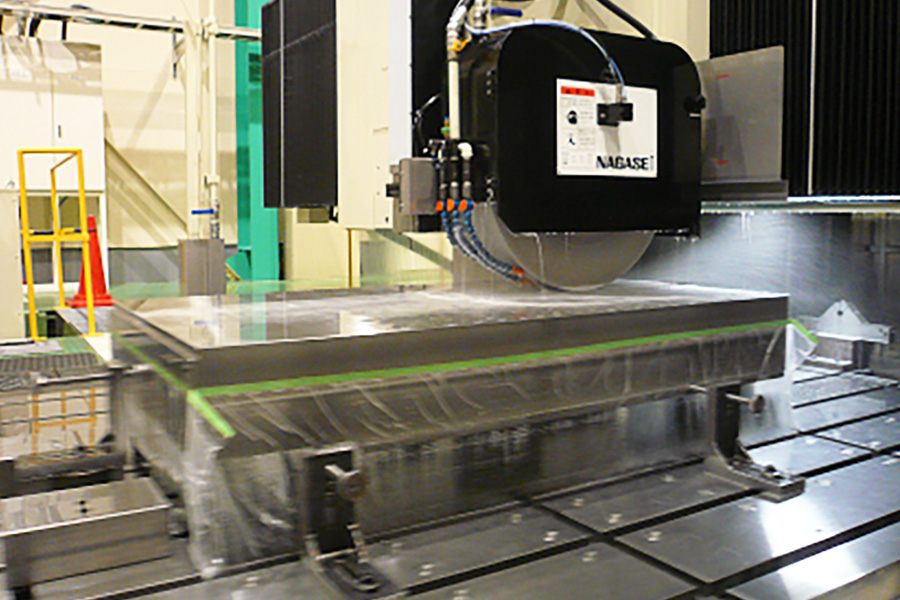

Large Workpieces Grinding (Cast metal)
Straightness: Less than 0.9μm/2m
Material: Cast metal
Size: 1750 x 950mm
Machine: ORIGIN-4025
