THE NEXT-GENERATION MACHINE
HIGH PRECISION DOUBLE COLUM TYPE SURFACE GRINDING MACHINE
HIGH PRECISION DOUBLE COLUMN TYPE SURFACE GRINDING MACHINE
SGX-126・168 B(S)L2D-Neo3 NEW!!
HIGH PRECISION DOUBLE COLUM TYPE SURFACE GRINDING MACHINE

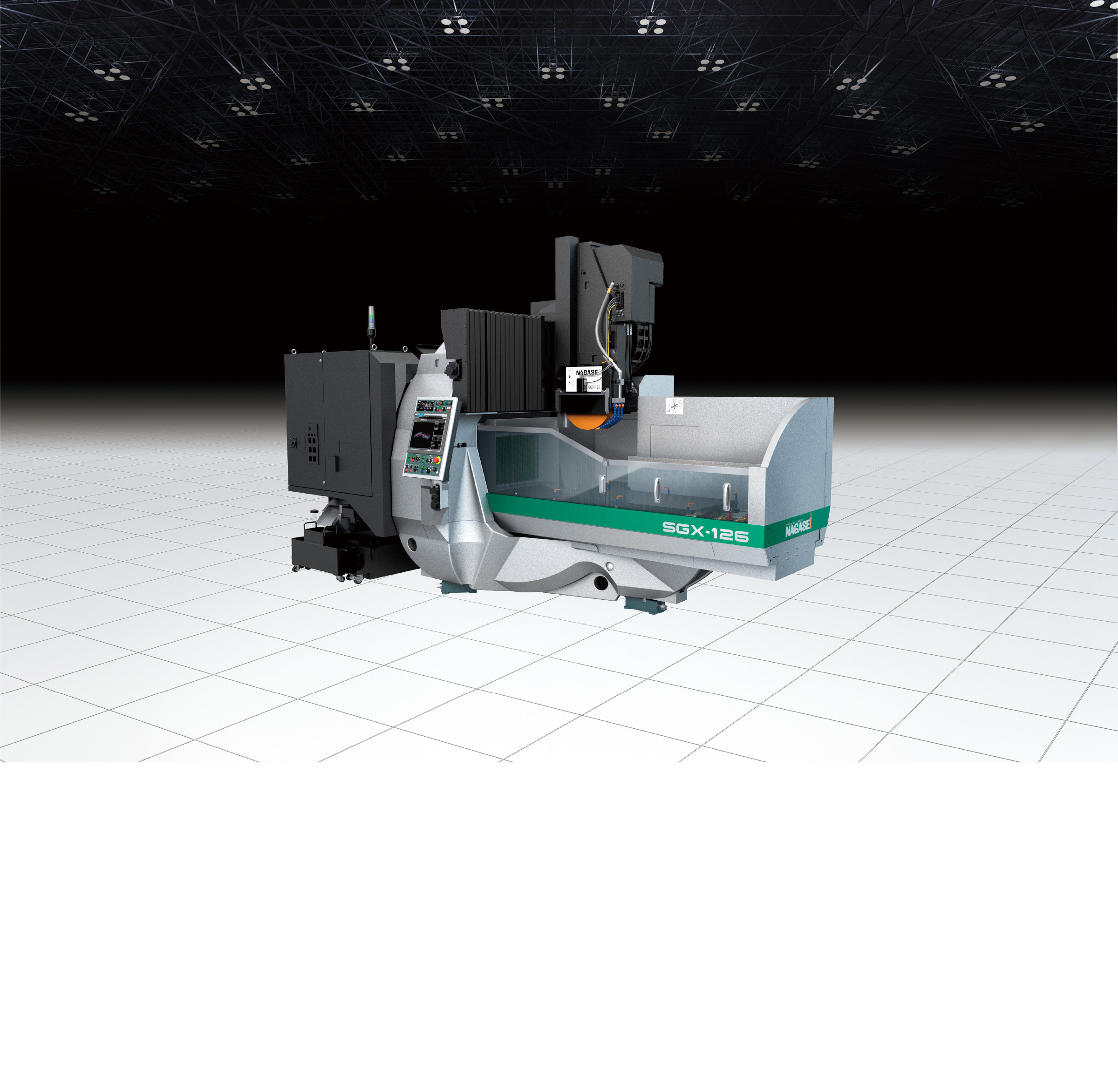

SGX-126･168
High Precision! High Efficiency! Space Saving! High Cost Performance! New Generation Mid-Range High-Precision Double-Column Surface Grinding Machines SGX-126 and SGX-168 are here!!
Target Machining
Achieves High-Precision Surface Grinding with Overwhelming Productivity
Ideal for Machining Medium-Sized Mold Plates and Precision Parts

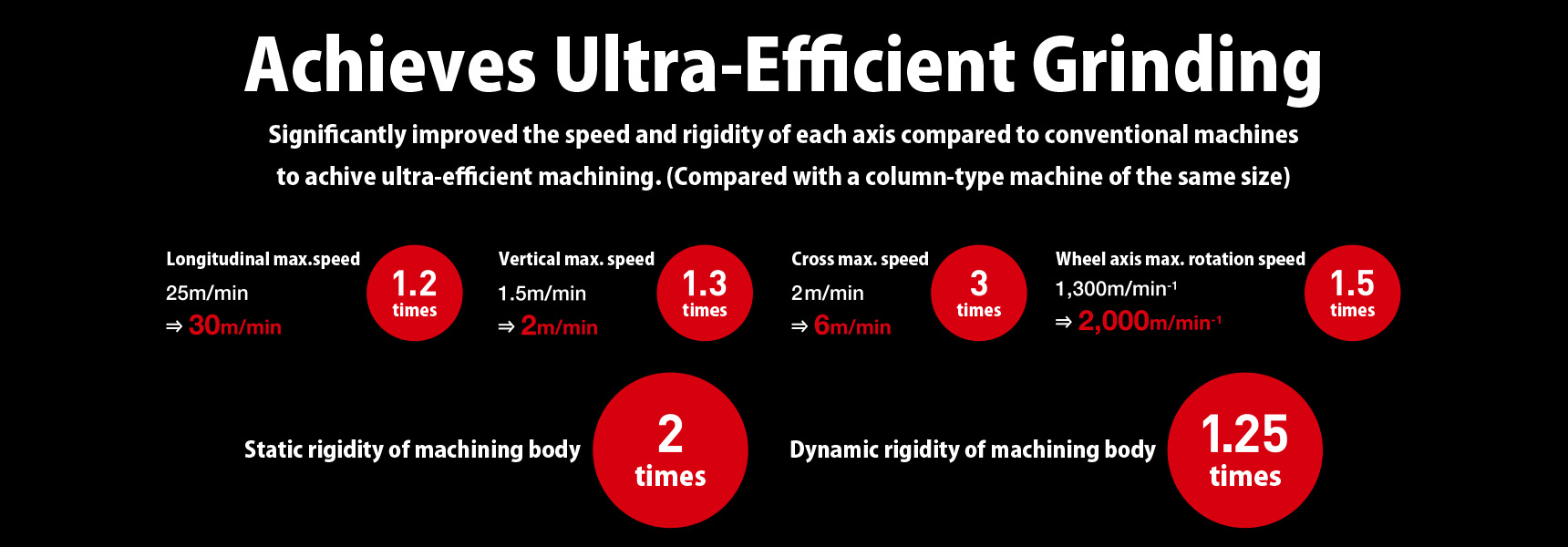

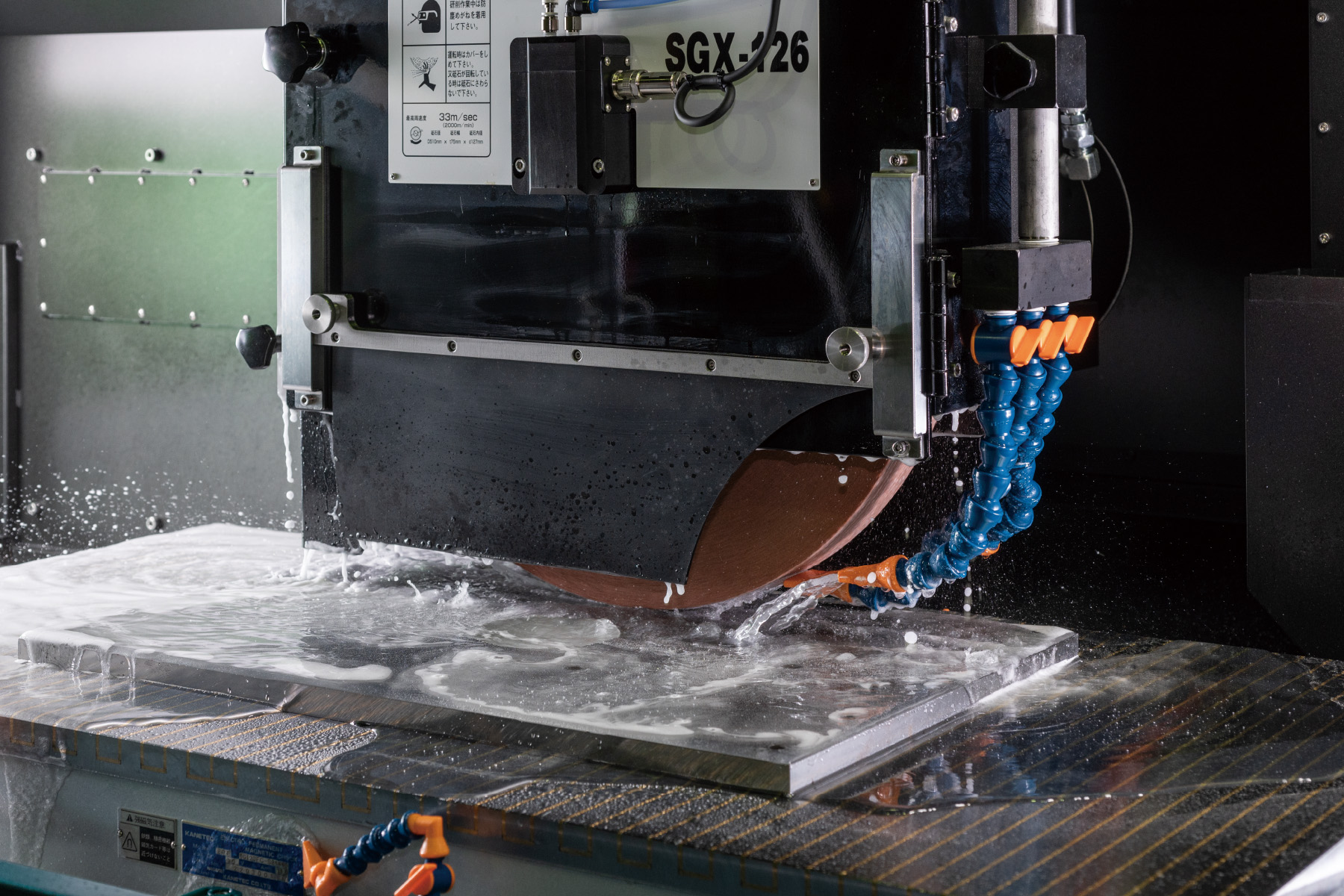

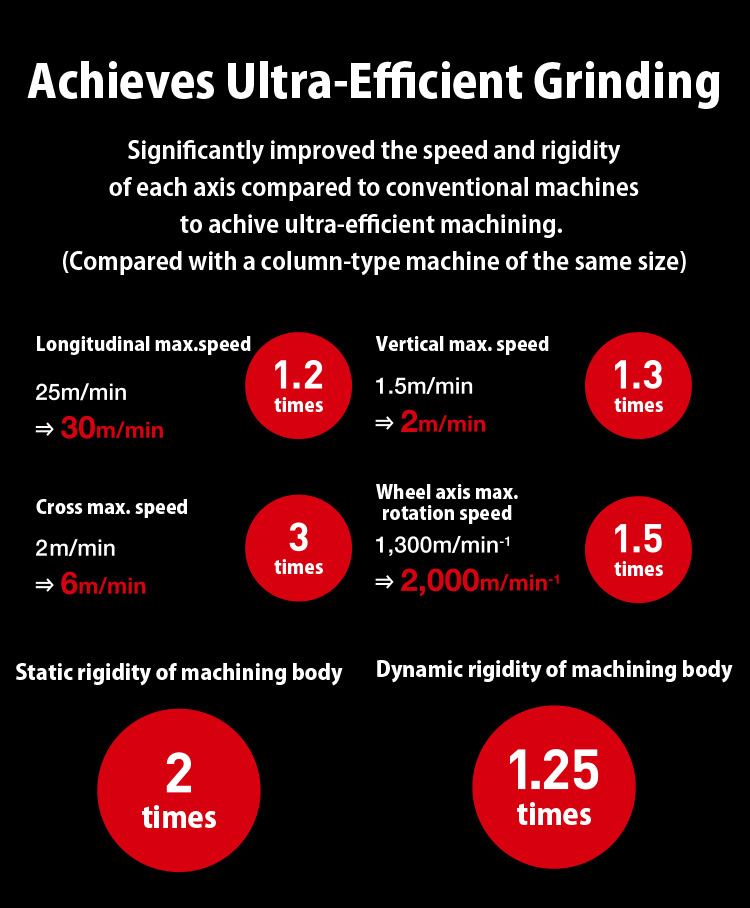

Achieves Highly Efficient of High-Precise Grinding
Rigidity of machining points is dramatically improved. Achieves overwhelmingly efficient machining.

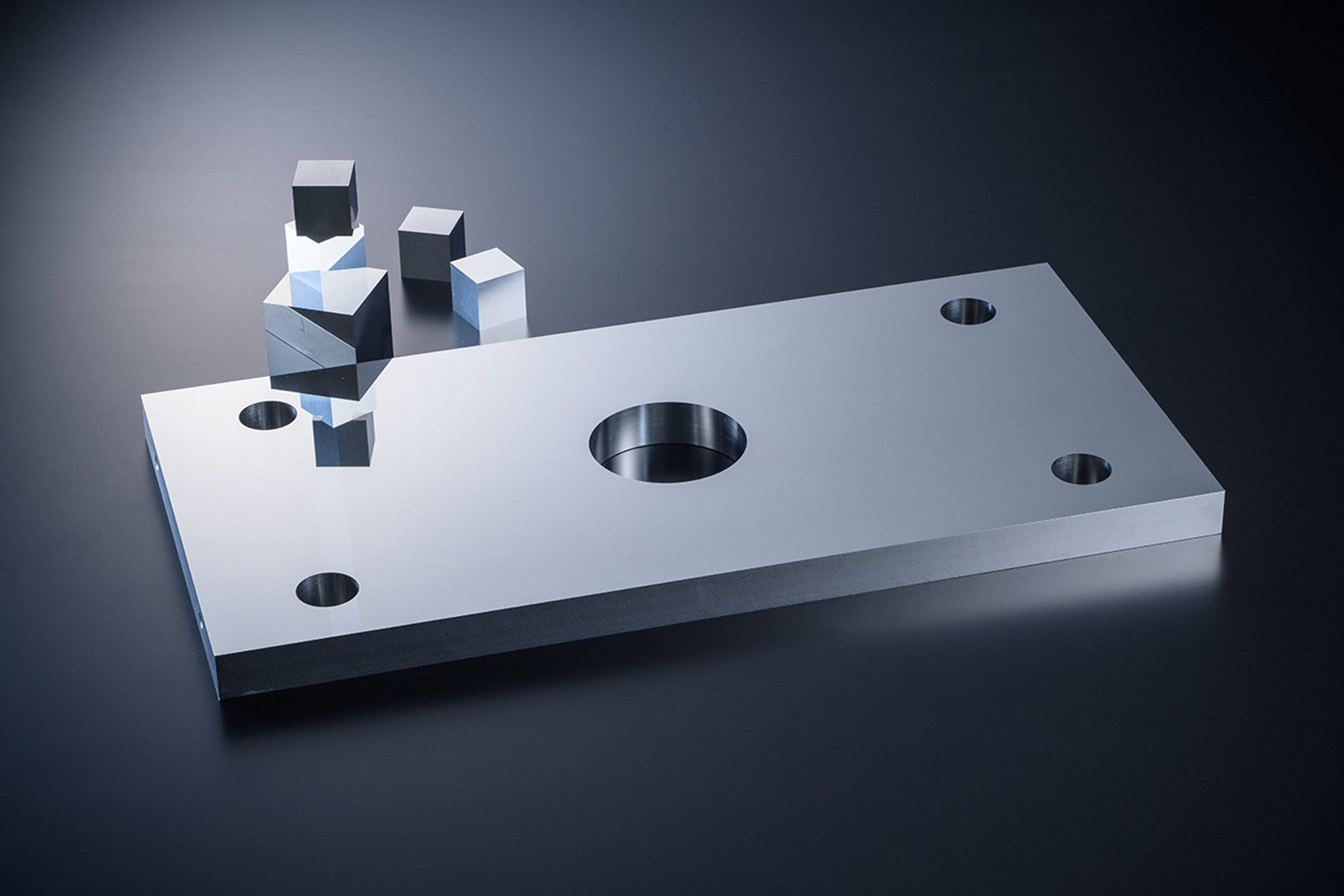

Ideal for Processing Medium-Sized Mold Plates and Precision Parts
Achieves high-precision surface grinding with overwhelming productivity and cost performance.
Features
Ultra-High Rigidity, Compact
New Generation Mid-Range High-Precision Double Column Surface Grinder
1. Achieves of High-Precision Surface Grinding with Overwhelming Productivity
Medium-sized high-precision double-column type surface grinder with a completely new and ideal newly designed structure that overturns conventional concepts with NAGASE's unique IGTARP DESIGN.Compared with conventional single-column machines, the static rigidity of the machining point has been doubled and the dynamic rigidity has been improved by 1.25 times.This new-generation, mid-range, double-column surface grinder saves space, improves workability, and saves energy.

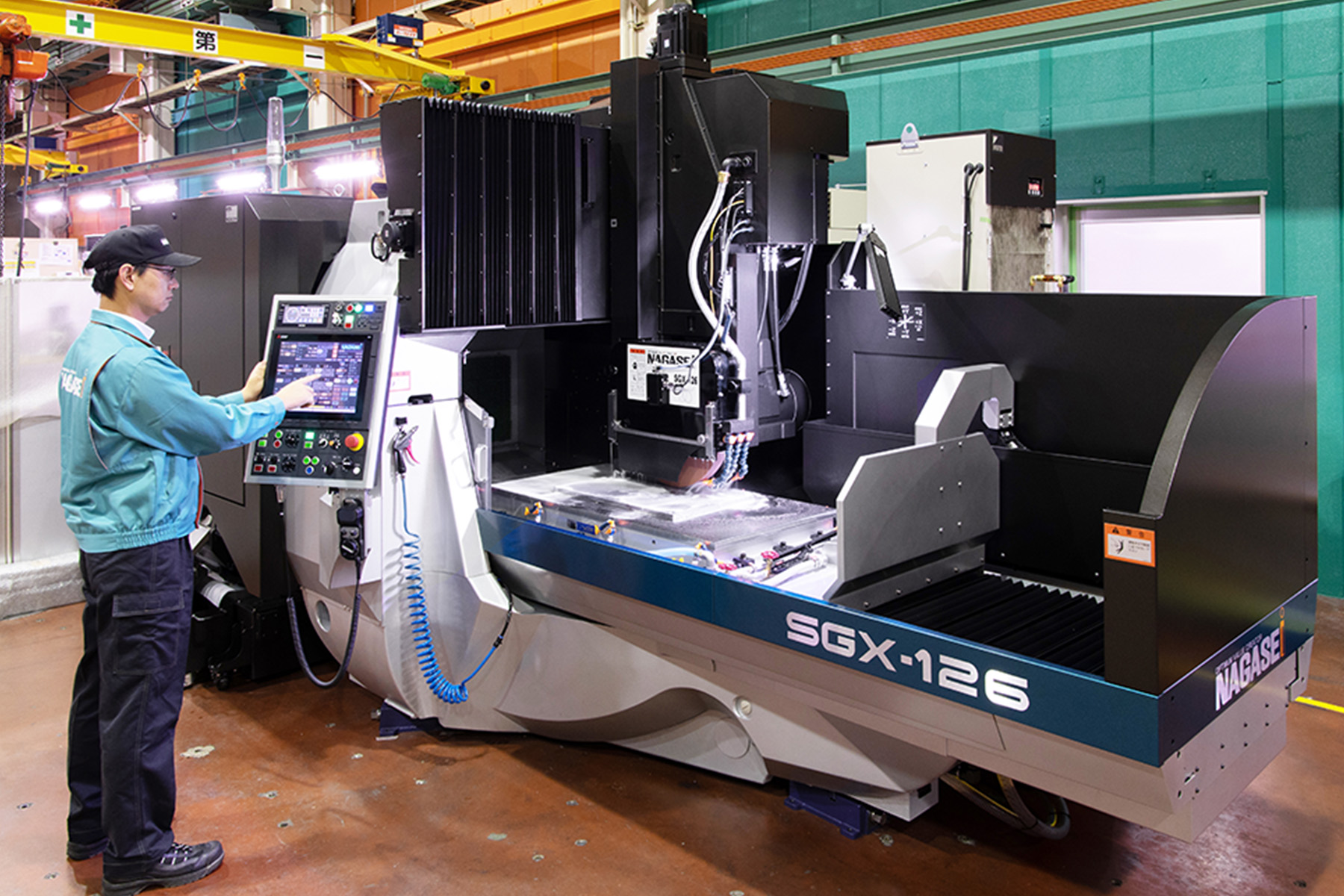

A Completely New and Ideal Structure That Overturns Conventional Concepts
A three-point support high-rigidity bed is used.
NAGASE's unique high-precision dynamic pressure sliding structure is used for the left and right table guides.
2.3-Point Support High-Rigidity Bed Structure Is Adopted
IGTARP DESIGN has adopted a three-point support high-rigidity bed.The left and right table guides are made of NAGASE's unique high-precision dynamic pressure sliding structure, which is carefully finished by skilled workman.The drive system uses a unique, highly durable servo cylinder to achieve straightness and precision unmatched by other machines with sliding surfaces.

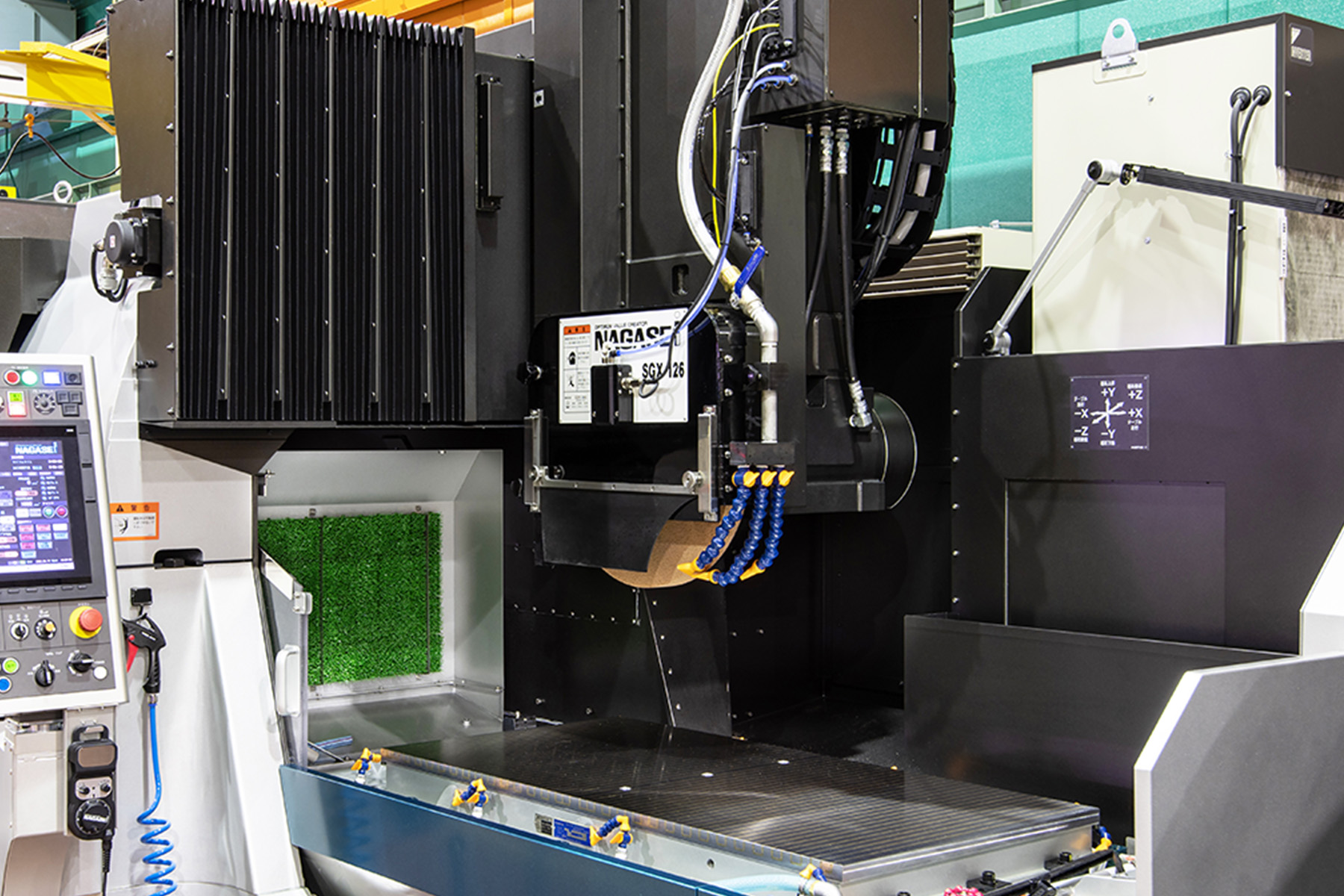

Achievement of Overwhelmingly Efficient Machining
A 15kW high output motor is used for the grinding wheel spindle.
Up to ⌀510 x 75 mm wide grinding wheel can be mounted.
3.Highly Rigid Grinding Wheel Spindle for Heavy-Duty Grinding
The grinding wheel spindle is equipped with a 15kW high-output motor that can mount a grinding wheel up to ⌀510 x 75mm wide, achieving overwhelmingly efficient machining. Ball bearings are standard. Hydrostatic bearings can be mounted as an option.

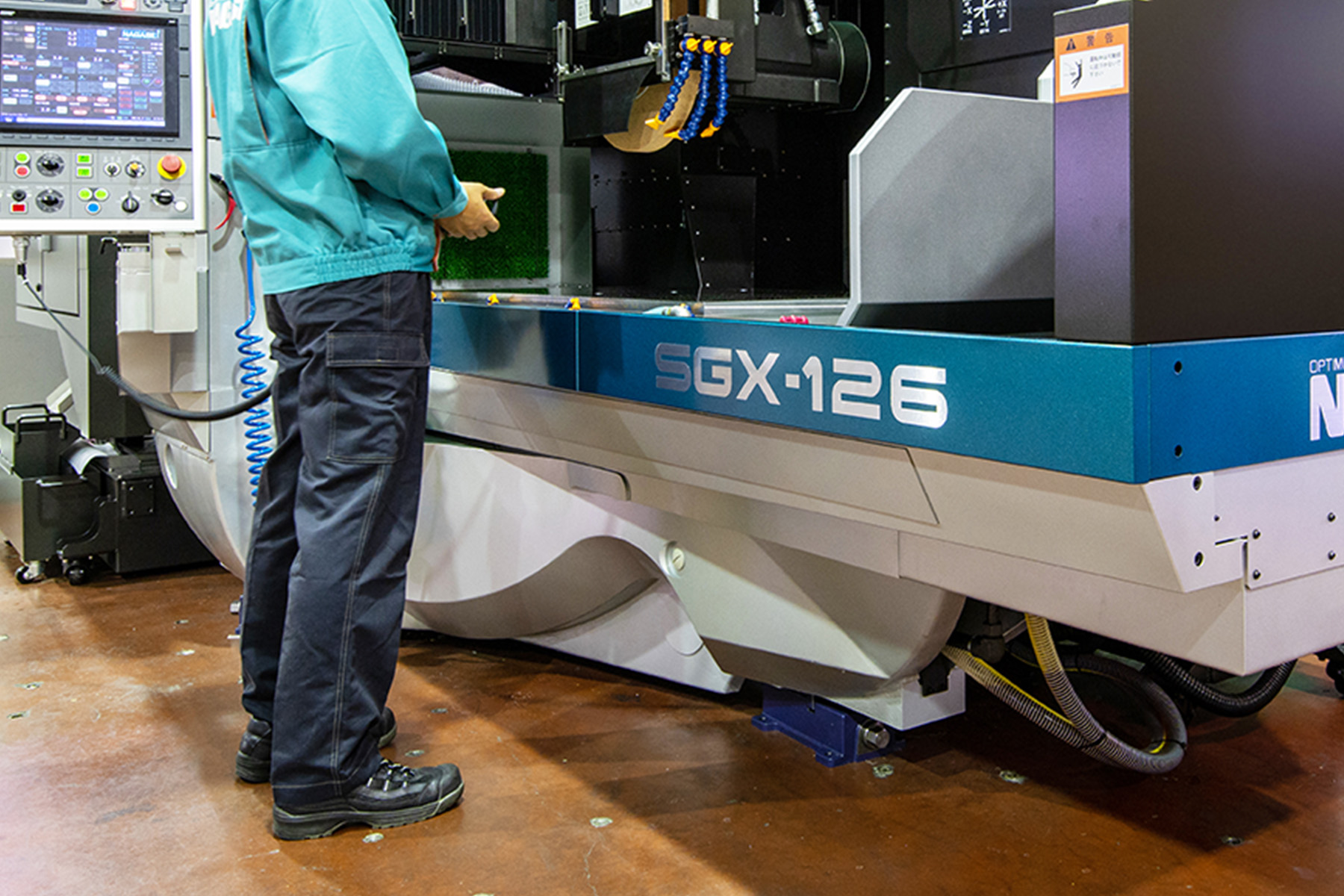

Worker Can Lean in and Set the Workpiece without Scaffolding.
Height from floor to top of chuck is 850mm
(In case of SGX-126 chuck thickness 100mm)
4.Smallest Installation Space in Its Class (compared to the same processing area, according to NAGASE's survey)
The space-saving design of the new machine is 50% smaller than the conventional single-column machine.The SGX-126 has the smallest machine footprint in its class for the same machining area (According to NAGASE's survey).
The height of the SGX-126 from the floor to the top of the chuck is 850 mm.
(in the case of a chuck thickness of 100 mm), which allows the operator to lean in and set the workpiece without a scaffold.

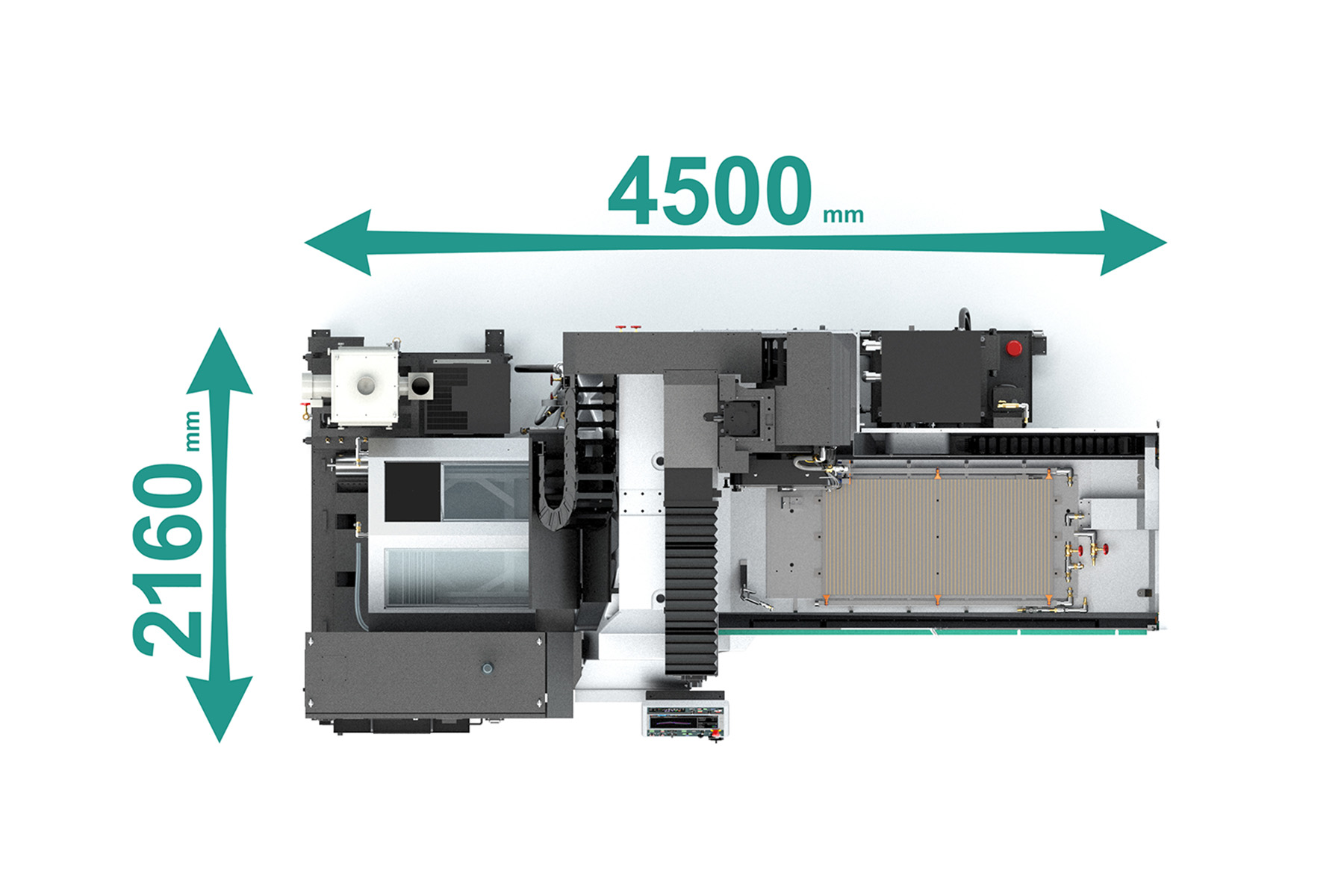

Achieved the Smallest Installation Space in Its Class (compared to the same processing area, according to NAGASE's survey)
Installation area is reduced by 50% compared to conventional single-column machines.
5.Advanced "Smart Thermonics" Achieves Energy-Saving
The pump motor of the hydraulic oil tank is optimally controlled according to the driving conditions.The electricity consumption of the pump motor is reduced by half compared with conventional machines.

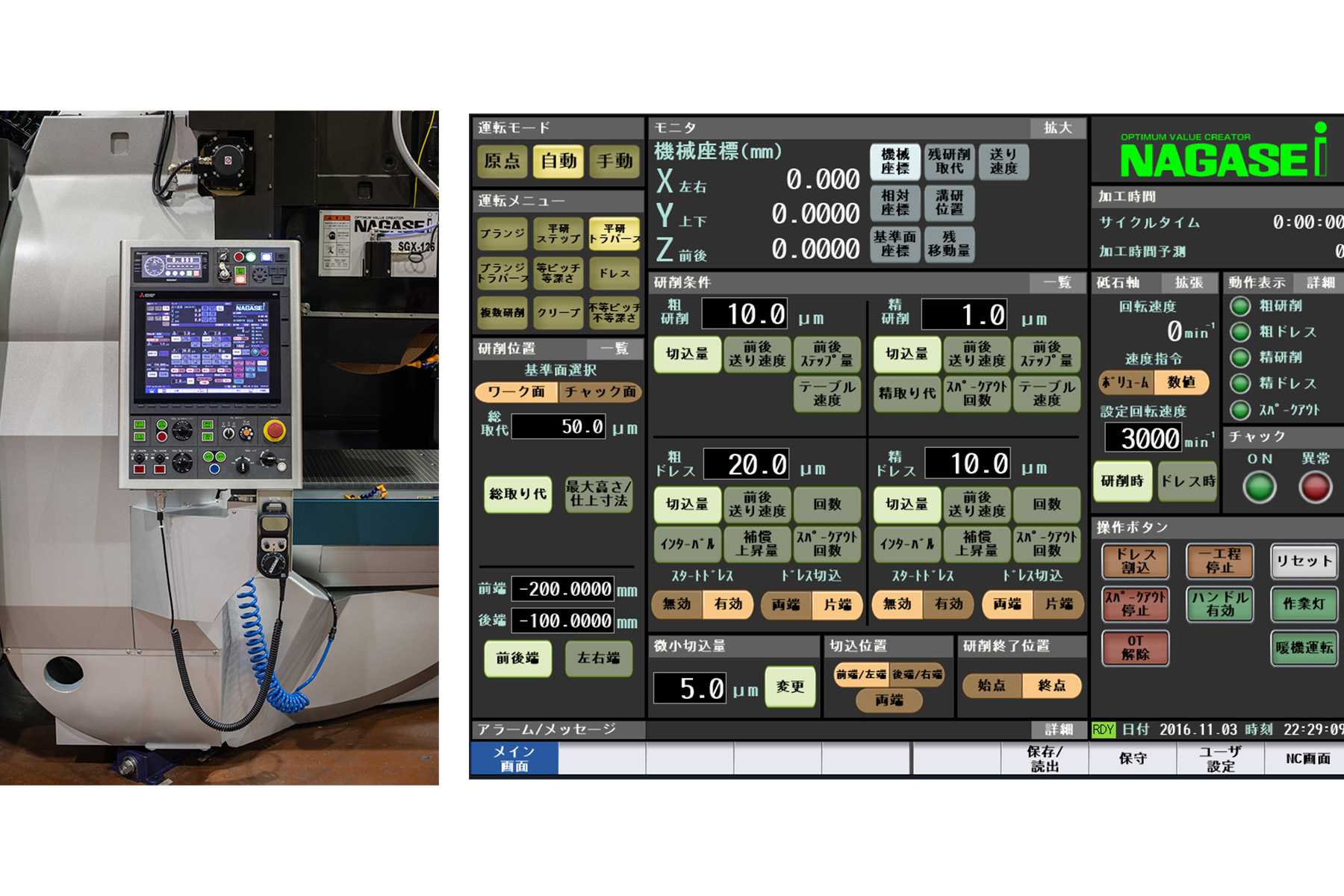

Equipped with Neo3 Simple Touch-Panel Control System
Automatic grinding of flat and groove surfaces and automatic dressing can be set up with revolutionary ease of use.
This revolutionary system can also be used for semi-manual grinding.
6.Unique Coolant Tank System for Heavy-Duty Grinding
The coolant tank is equipped with a unique high-magnetic separator to meet the specifications for heavy-duty grinding.
7."Neo3" Control System with Outstanding Ease of Use
Automatic grinding of flat surfaces and grooves, and automatic dressing can be easily set by anyone.This revolutionary system can also be used for semi-manual grinding.
8.On the Machine Measurement Unit "SMART 1D PROBING" (OP) Can Be Installed.
"SMART 1D PROBING", which enables automatic workpiece height measurement and automatic catch-up grinding, can be installed as an option.The "SMART SURF-UP®" (OP), which can freely machine any shape, can also be installed.
Options

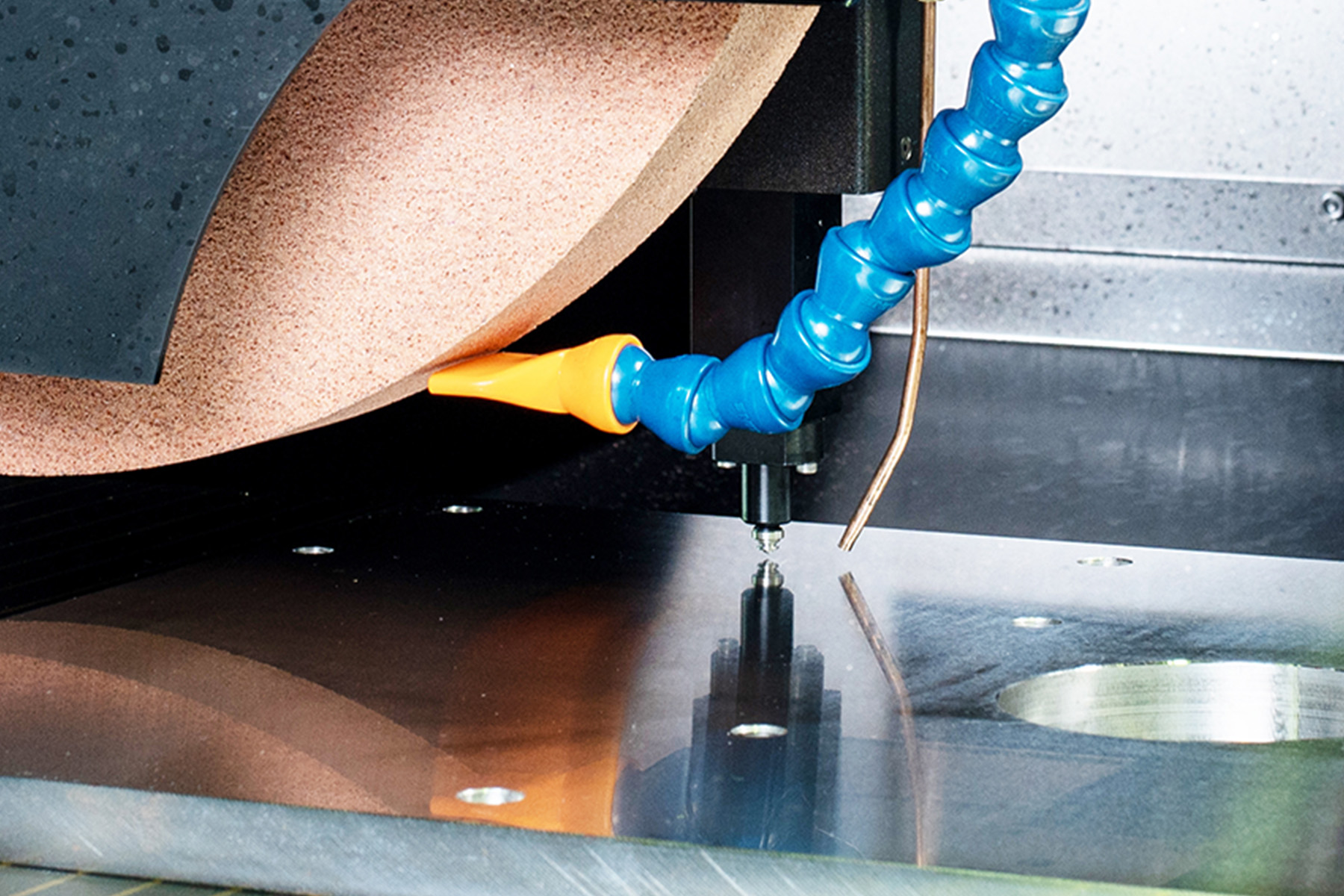

SMART 1D PROBING (On-Machine Measurement Unit)
Capable of automatic workpiece height measurement and automatic catch-up grinding.

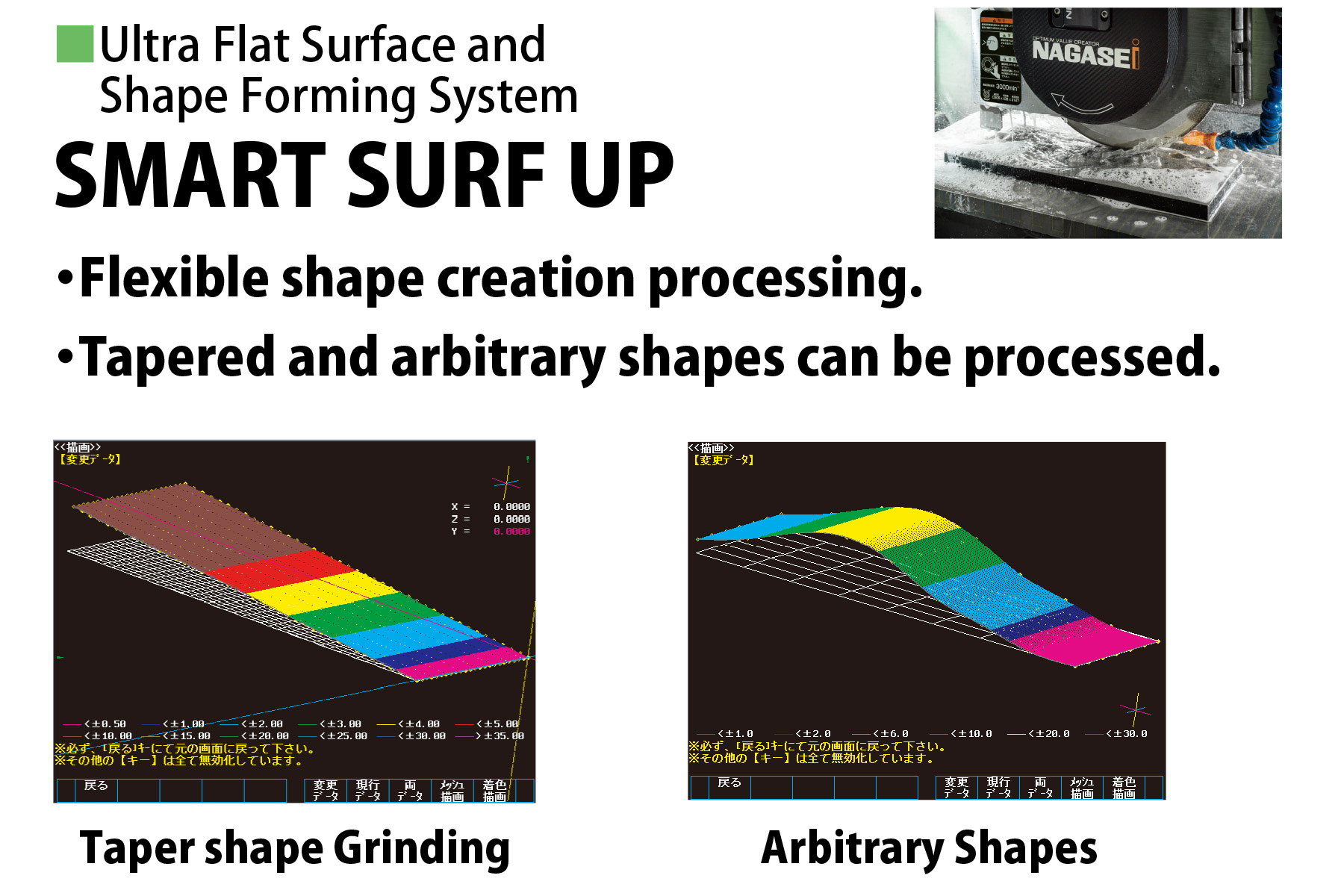

Ultra Flat Surface and Shape Forming System
Machine operation is controlled by corrected values without changing the direct coordinate display.
Simple shaping of the workpiece shape and tilt correction are possible.

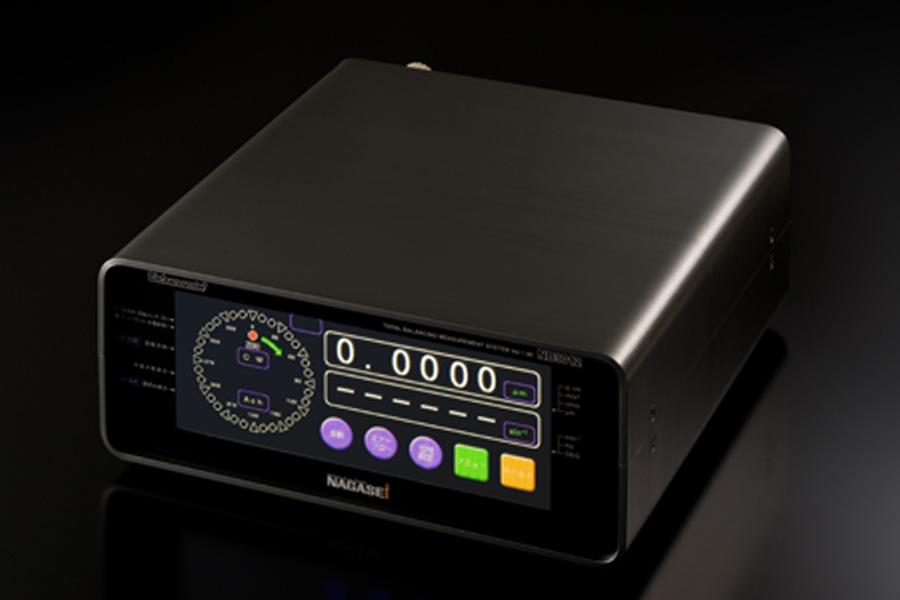

Balancevector "NB-3012"
It displays the vibration of the grinding wheel rotation, making ultra-precision grinding easier.
Ultimately Efficient Coolant System「爆削BAKUSAKUⓇ」
Capable of infeed several times more than that of conventional infeed.Total machining system that enables you grinding with unprecedented efficiency.
Specification
| Machine/Items | Size | Chuck Size | Table Working Area (length x width) |
Table Top to Spindle Center |
Vertical Min. set unit | Wheel Size (OD x W x ID) |
Wheel Axis |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kW | ||
| SGX | 126 | 1200 x 600 | 1500 x 695 | 825 | 0.0001 | ⌀250～510 x 38～75 x ⌀127 | 15 |
| 168 | 1600 x 800 | 1900 x 895 | 825 | 0.0001 | ⌀250～510 x 38～75 x ⌀127 | 15 |
- Contents and specifications are subject to change without prior notice. The contents of description and pictures may contain optional specifications. To place an order, please check the manufacture specifications for details.
- Machine accuracy and machining accuracy described on this site may differ depending on the measurement and machining conditions.
- For further details, you may request specifications, technical information, etc.
- For resale or export of the product, contact us in advance. Exporting products require designated procedures as determined by the Foreign Exchange and Foreign Trade Control Law.
- This product must not be transferred for any purposes of use that prevents international peace and security or used for one’s own purpose or used by a third party.
