Helical-Gear Grinding
Grinding Examples of Ultra Precision Gear Forming Grinding Machine 2
「目指すは世界一の歯車研削加工精度」。ナガセインテグレックスの超精密ヘリカルギア研削盤（はすば歯研削加工機）SUGseriesによる炭素鋼やハイス鋼などのヘリカルギア・はす歯形状の加工事例をご紹介。
Capable of Grinding Helical Gears and Master Gears with Old JIS 0 Class Accuracy.
Helical gear grinding is the diagonal machining of a threaded tooth profile on a cylindrical workpiece using a grinding wheel. This is made possible by synchronous control of multiple axes using a numerically controlled gear forming grinding machine. In the machining of helical gear-shaped electrodes, master gears, and quiet and conductive high-precision gears, NAGASE's gear grinders are capable of machining with accuracy better than the old JIS 0 class.
Works
Herlical-Gear Grinding of S45C
Accuracy: Old JIS 0 class
Material: S45C
Size: ⌀124 x 50mm
Machine: SUG-300SL3S-N5

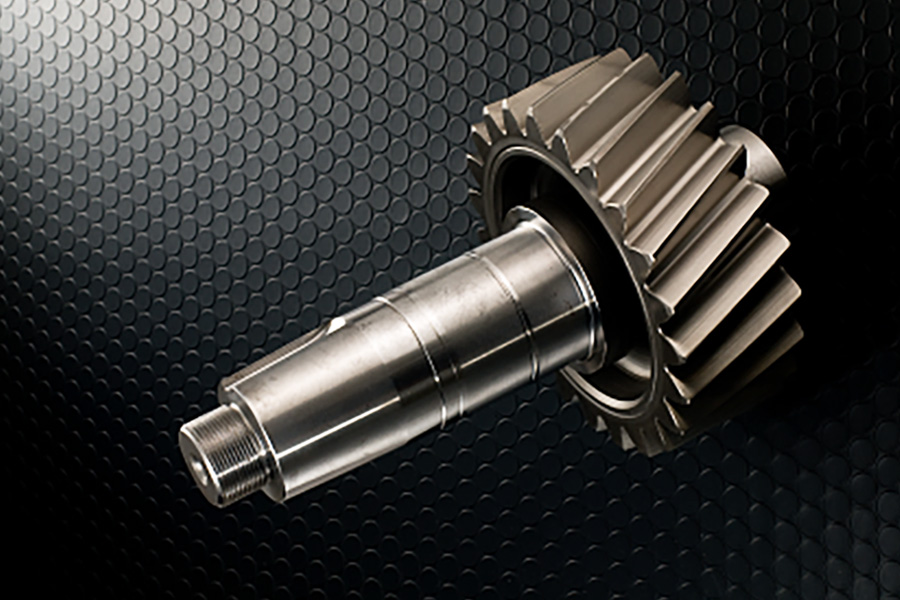

Herlical-Gear Grinding of S55C
Accuracy: Old JIS 0 class
Material: S55C
Size: ⌀190 x 80mm
Machine: 1000GC-S5CNC

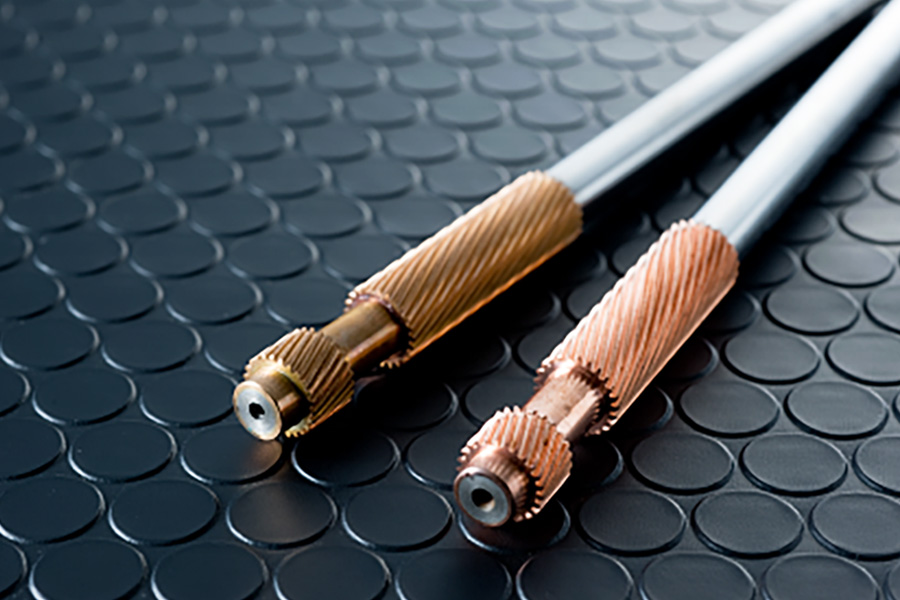

Grinding of Helical Gear Electrodes of Old JIS Zero-class
Accuracy: Old JIS 0 class
Material: Copper
Size: ⌀14.6 x 200mm
Machine: SUG-300SL3S-N5

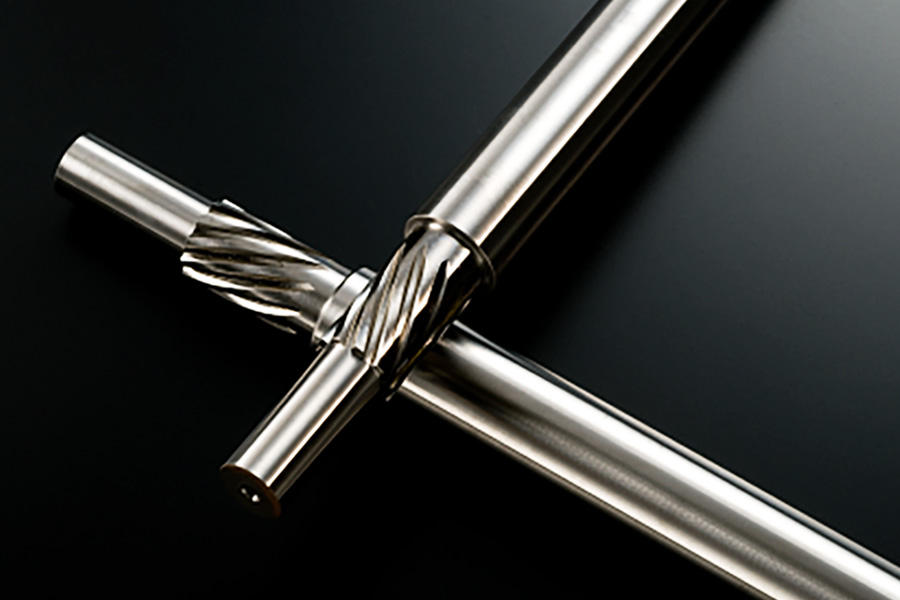

Grinding of Helical Gear Electrodes of Old JIS Zero-class
Accuracy: Old JIS 0 class
Material: SKH-57
Size: ⌀16.2 x 200mm
Machine: SUG-300SL3S-N5
Inquiries
We are experts in ultra-precision machining, If you have any type of machining problems, please feel free to consult us.
Consultations are free of charge. First, please tell us about the precision, size, materials, etc. related to the machining you are considering.
For test machining, prototype machining support, or equipment utilization, our experienced engineers at our Technical Center will examine the most appropriate methods and respond promptly.
(For urgent cases, please contact our regional sales offices.)
