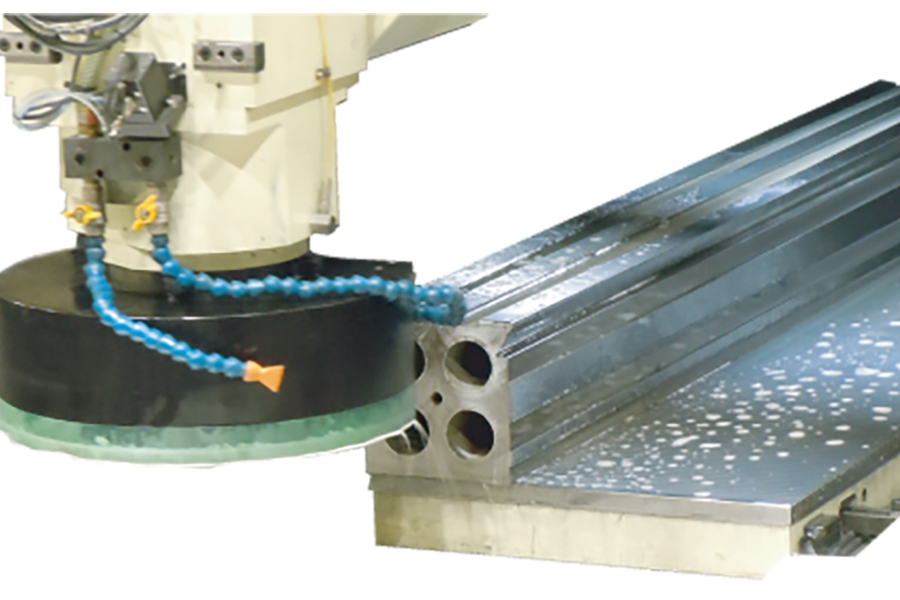

Five-Sided Machining of Large Workpiece
Grinding Example of Ultra Precision Double Column Surface Grinding Machine 4
世界最高の精度のベッド研削盤。ナガセインテグレックスの超精密門形静圧研削盤ORIGINseriesによる鋳物や炭素鋼など大型精密機械部品の五面研削加工事例をご紹介。
Pre-Processing, Right Angle Grinding, and On-Machine Measurement are All Possible with a Single Chuck.
Setup changes are a major issue in the precision grinding of large workpiece. NAGASE's ultra-precision double column multitasking grinder has developed a vertical wheel axis that enables five-sided machining (cutting and grinding) of large workpieces. It is also possible to take advantage of the high precision of the machine's movement to perform various measurements on the machine. It is becoming a matter of course that NAGASE's machine can perform everything from pre-processing to finishing and measurement in a single chuck.
Works

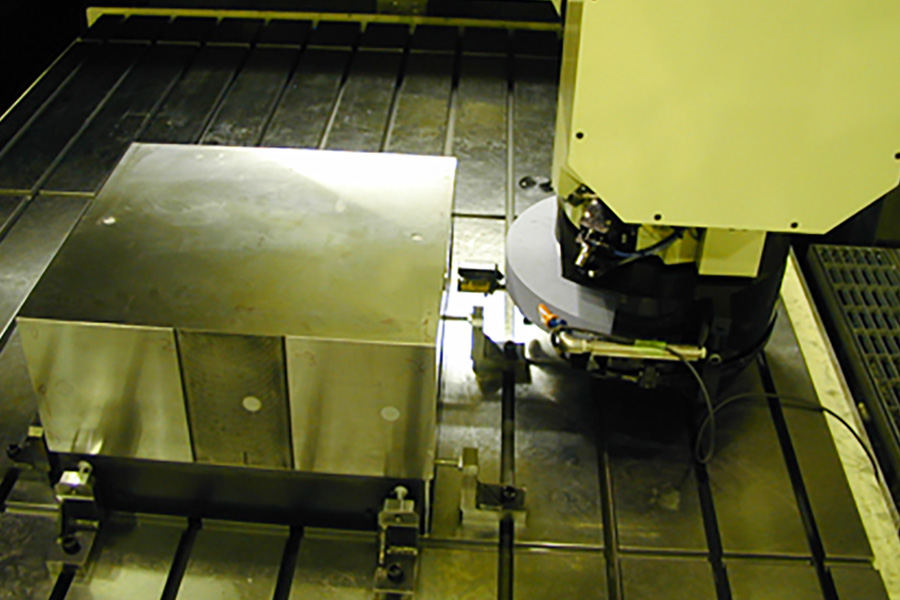

Right Angle Machining of Mass Blocks
Right angle accuracy: 3μm/600mm or less
Material: FC-250
Size: 550 x 600 x 250mm
Machine: ORIGIN-5025SXS-CNC

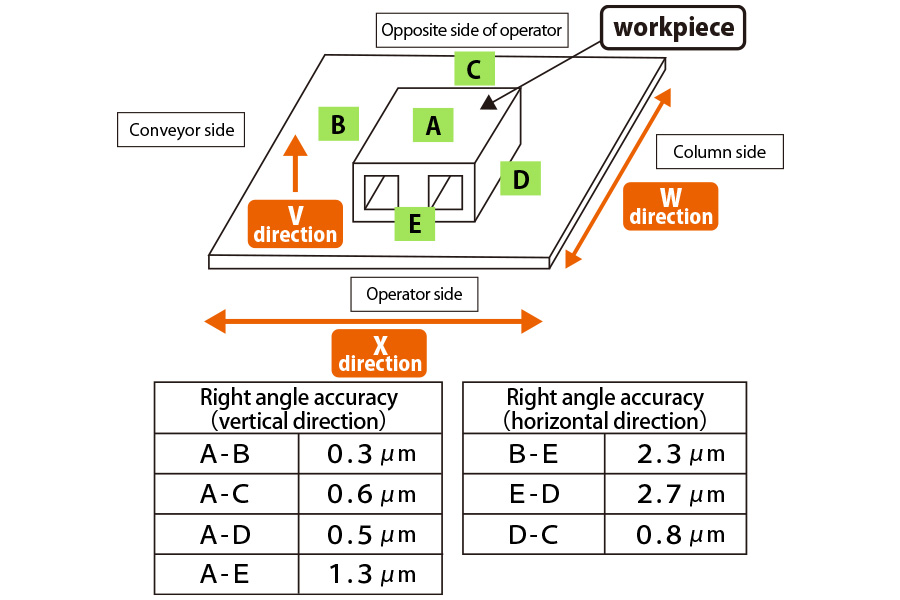

Right Angle Machining Accuracy Data for Mass Blocks

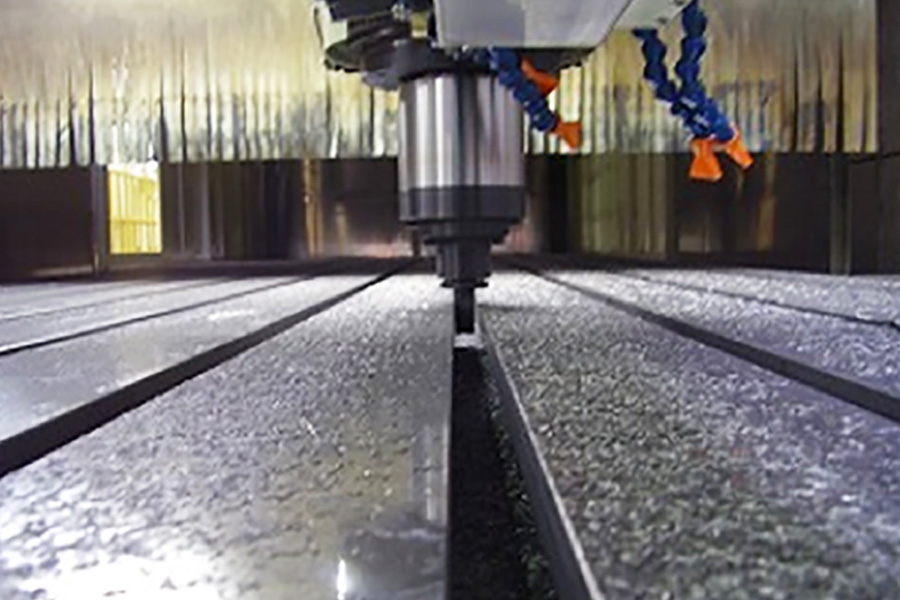

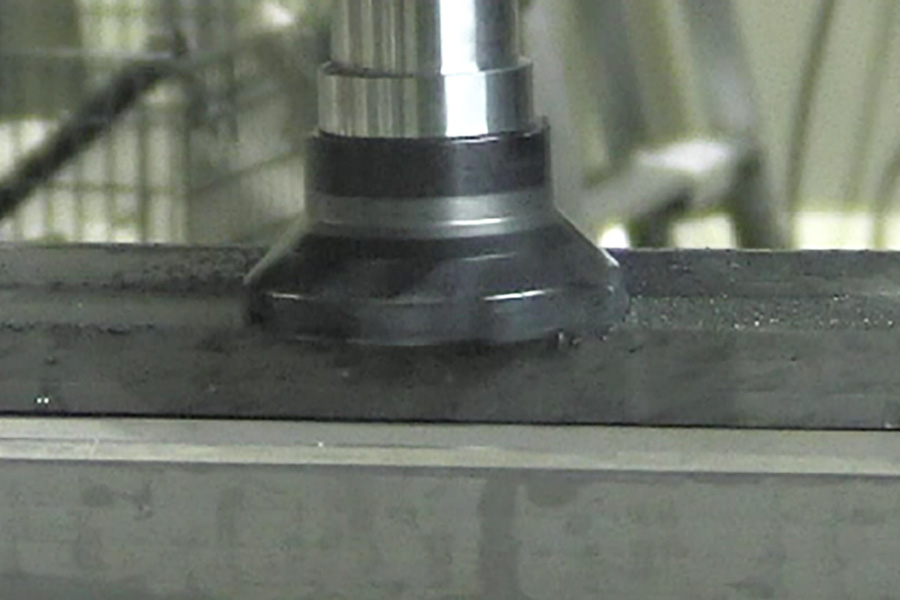

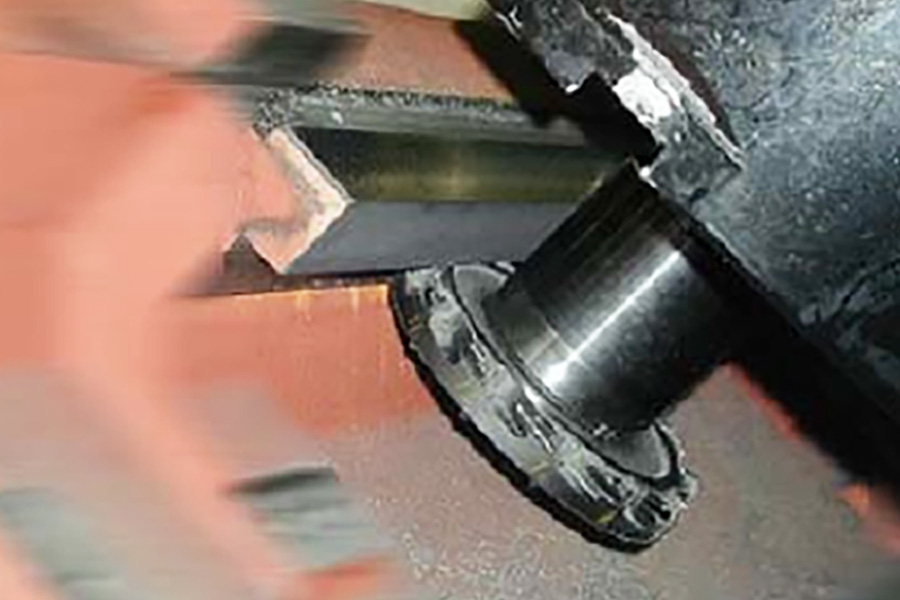

High Precision Grooving by End Milling
Milling is ten times as efficient as grinding
Use before grinding process
Machine: ORIGIN-12025
