Micro Machining on Roll Mold

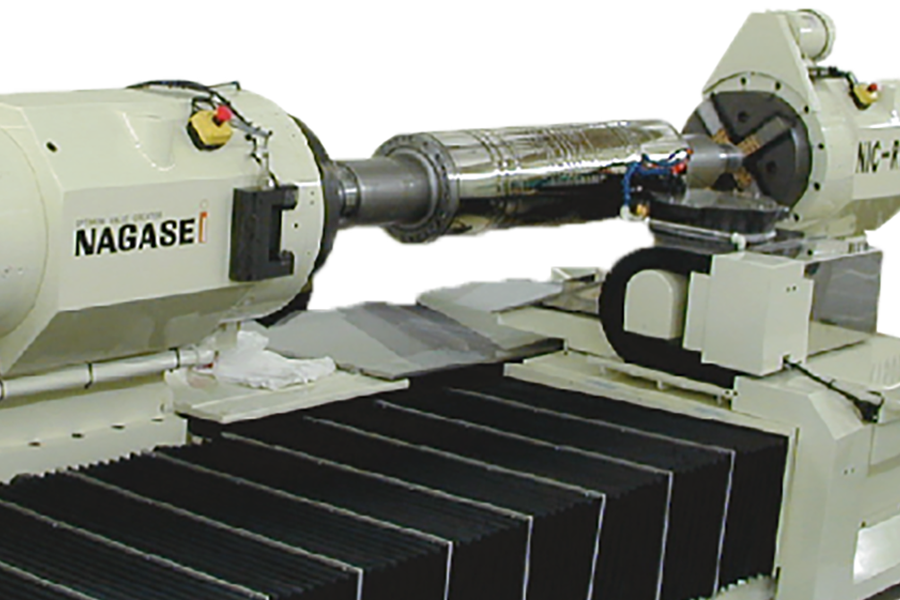

Machining Example of Ultra Precision Roll Processing Machine (Nano machine)
「転写誤差ゼロ」を追求できるナノ加工機はナガセインテグレックス。微細加工機NIC-Rseriesによるロール金型への微細溝入れ加工・リニアプリズム加工・クロスカット加工などの事例をご紹介。
Capable of Micro Machining such as Cross Prisms on Large Roll Workpiece.
Roll micro machining (micro roll grooving) is the cutting of a submicron to micrometer periodic structure on the surface of a workpiece on a roll, such as NiP, with a diamond turning tool. Typical examples include linear and cross-prism processing of high-performance film. In cross-prism machining, where multiple grooves intersect, the pitch must not shift over a long processing time. NAGASE's micro roll processing machines achieve outstanding repeatability and stability.
Works

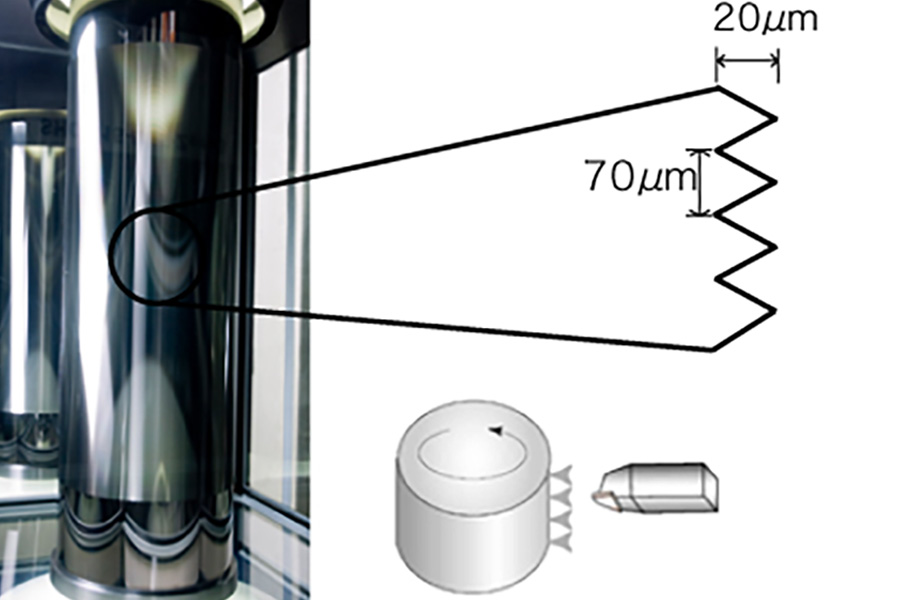

Micro Machining to Roll Mold
Groove depth: 20μm Cycle: 70μm
Pitch: 70μm
Number of grooves: 11,428
Material: Non-electrolytic NiP
Size: ⌀300 x 1000mm
Machine: RG-800S4-N2

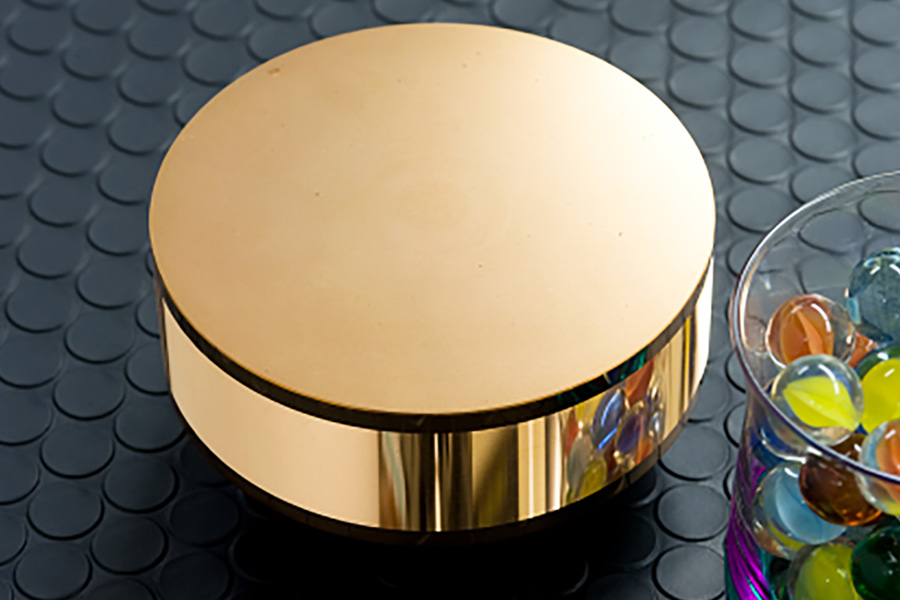

Micro Machining to Roll Mold
Groove depth: 21μm
Pitch: 50μm
Material: Oxygen-free copper
Size: ⌀120 x 40mm
Machine: NIC-300S5-N5
