Free-Form Surface Grinding
Machining Example of Ultra-Precision Forming Surface Grinder 4
「究極のゼロ」。超精密研削盤のナガセインテグレックス。成形平面研削盤による工具鋼やSUS、ガラス、超硬材料などの鏡面研削加工事例をご紹介します。
The Ultimate in Machining, Requiring Machine Accuracy in All Axes: fcross axis, longitudinal axis, vertical axis.
Free-form surface grinding (free-form machining) is a process that uses a grinding wheel to cut and finish the surface of a workpiece with a curved surface that cannot be expressed by a simple mathematical formula.
If machining accuracy is defined as "the result of the transcription of the relative motion of the tool and workpiece, " then this machining process is the "ultimate in ultra-precision machining, " requiring machine accuracy in each of cross axis, longitudinal axis, vertical axis, and rotary axes, accuracy in synchronization of each axis (synchronization accuracy), and repeatable positioning repeatability.
Works

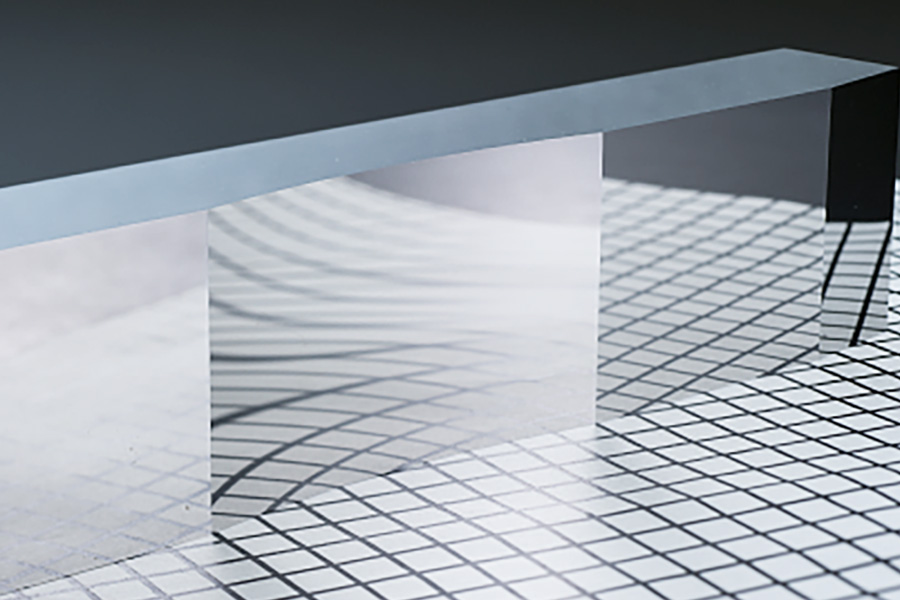

Mirror Surface Grinding of 3D Form (Free-Form Surface)
Form Accuracy: ±2μm
Roughness: 8nmRa, 54nmRz
Material: SKD-11
Size: 200 x 80 x 40mm
Machine: SGC-630αS4-Zero3
Method: Synchronized control of vertical and longitudinal axes

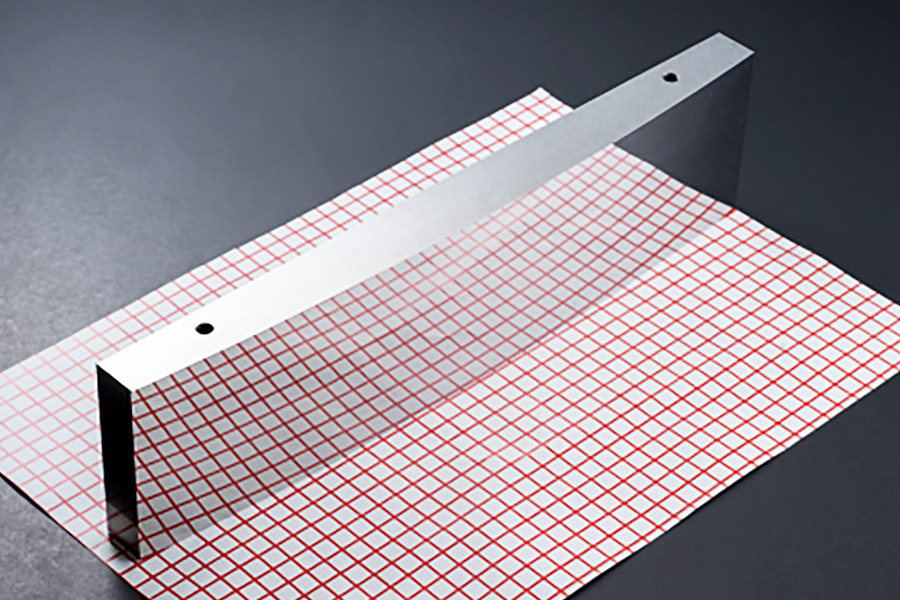

Mirror Surface Grinding of 3D Form (Crowning)
Form Accuracy: ±2μm
Roughness: 4nmRa, 42nmRz
Material: SKD-11
Size: 400 x 100 x 35mm
Machine: SGC-630αS4-Zero3
Method: Synchronized control of vertical and longitudinal axes

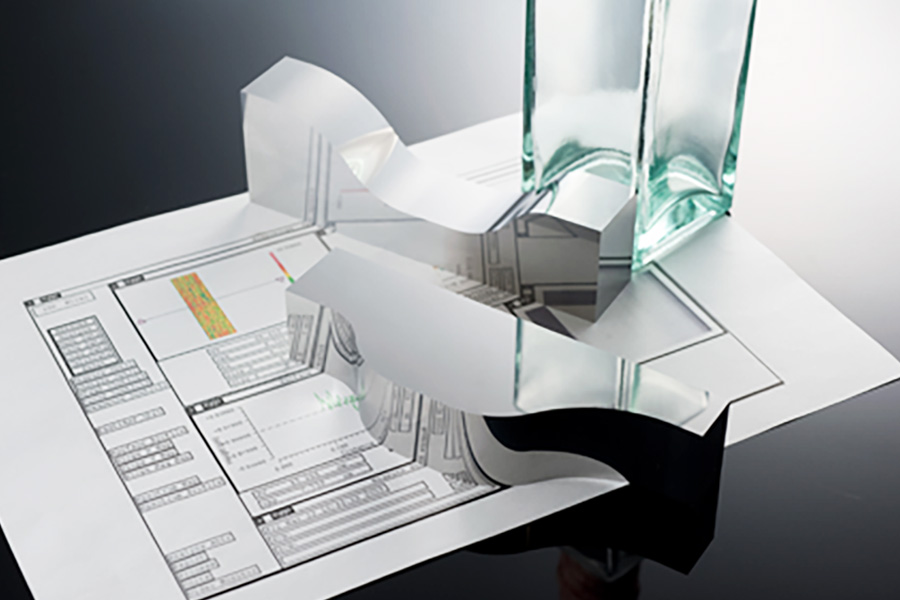

Ultra Precision Contour Grinding of LIB Seat Cutter
Form Accuracy: ±0.8μm
Roughness: 16nmRa, 105nmRz
Material: Carbide
Size: 150 x 30 x 40mm
Machine: SGC-630αS4-Zero3
Method: Synchronized control of vertical and cross axes

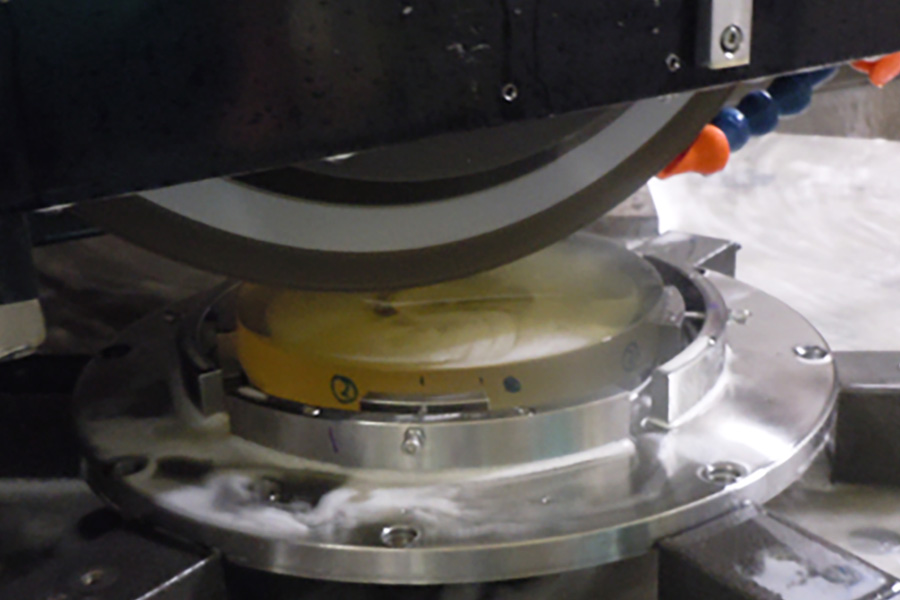

Mirror Surface Grinding of Aspherical Lenses
Form Accuracy: 0.8μm
Roughness: 1.3nmRa, 9.9nmRz
Material: Clearceram
Size: ⌀200mm
Machine: SGC-630αS4-Zero3
