Flatness Grinding
Machining Example of Ultra-Precision Forming Surface Grinder 2
「究極のゼロ」。超精密研削盤のナガセインテグレックス。成形平面研削盤による工具鋼やSUS、ガラス、超硬材料などの鏡面研削加工事例をご紹介します。
Pursuit of Sub-Micrometer Precise Parallel, Flat and Right Angles.
Flatness grinding (flatness machining) is the process of machining the flat surface of a workpiece using a grinding wheel. Flatness grinding is performed to even out the thickness of workpiece as well as to create geometrically correct flatness and parallelism on both sides. Among these processes, NAGASE's ultra-precision surface grinding machine are manufactured to realize "flatness creation process aiming at parallelism and flatness of 1 μm or less" with high repeatability and reproducibility.
Please take a look at the processing that pursues a higher grade of precision.
Works

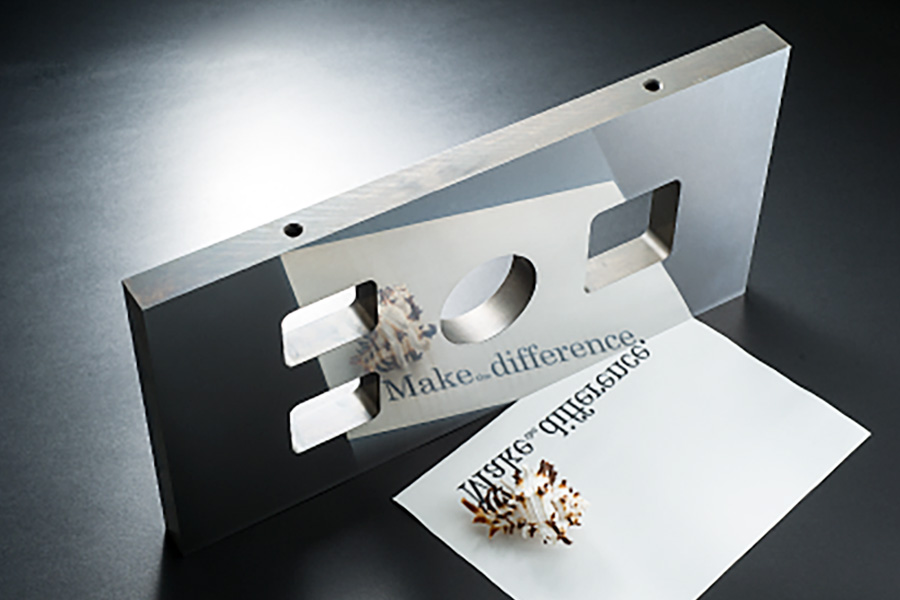

Ultra Precision Flatness Grinding （SKD-11）
Flatness：TIR 0.39μm／500×250mm
Material：SKD-11
Size：500×250×30mm
Machine：SGC-630αS4-Zero3

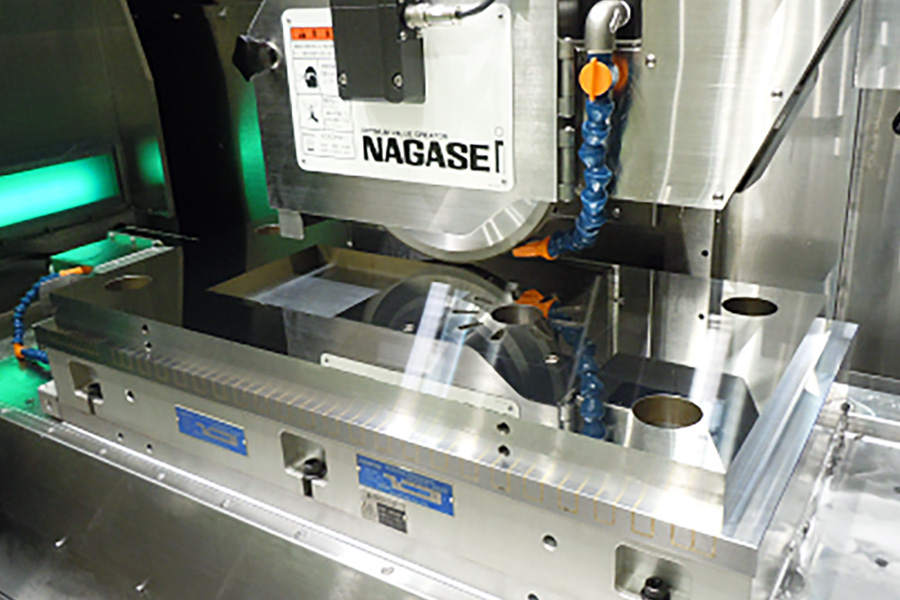

Flatness Grinding of Middle～Large Die Plate（SKD-11)
Flatness：TIR 0.8μm／750×350mm
Roughness：10nmRa, 90nmRz
Material：SKD-11
Size：750×350×40mm
Machine：SGC-840αS4-Zero3

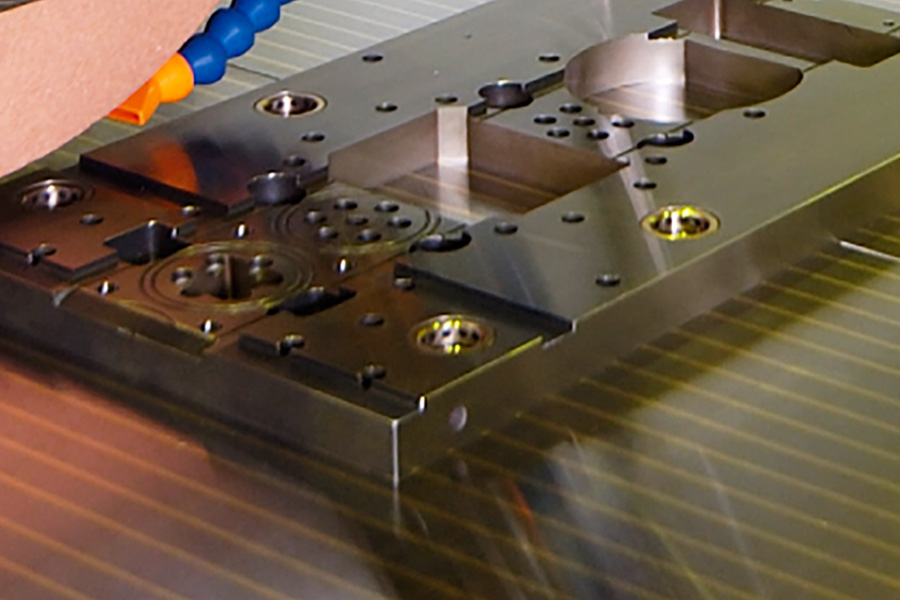

Flatness Grinding of Middle～Large Die Plate（S45C）
Flatness：TIR less than 1μm /520×300mm
Roughness：11nmRa, 103nmRz
Material：S45C
Size：520×300×30mm
Machine：SGC-154SL2S-PCnc
Flatness Grinding of Large Die Plate
(1800 x 700 mm size Mold Plate)
Flatness：
TIR less than 2.0μm／1800×700mm
Roughness：40nmRa, 600nmRz (#60)
Material：SS400
Size：1800×700×100mm
Measurement device： Talyvel
Machine：SGC-3010S4-N3
Inquiries
We are experts in ultra-precision machining, If you have any type of machining problems, please feel free to consult us.
Consultations are free of charge. First, please tell us about the precision, size, materials, etc. related to the machining you are considering.
For test machining, prototype machining support, or equipment utilization, our experienced engineers at our Technical Center will examine the most appropriate methods and respond promptly.
(For urgent cases, please contact our regional sales offices.)
