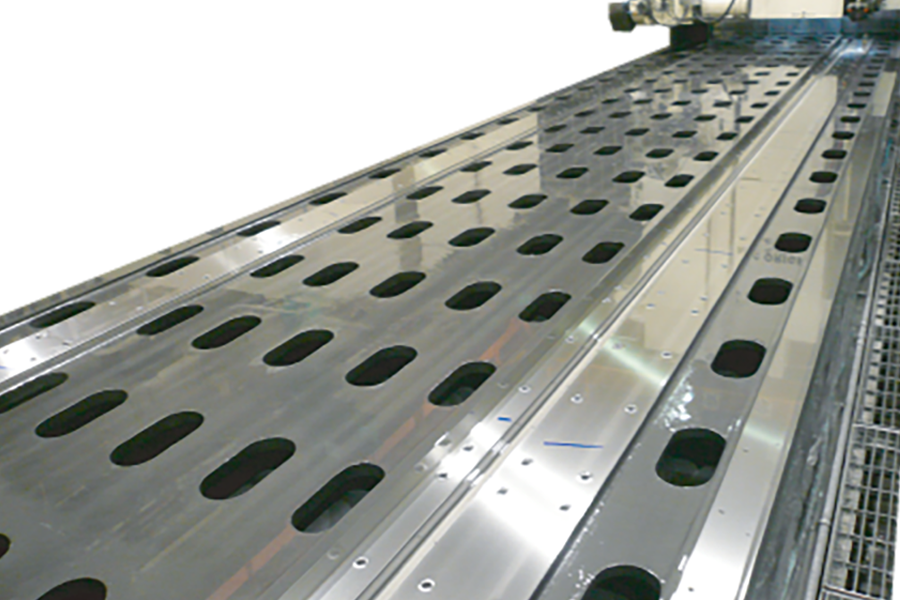

Flatness Grinding of Large Workpieces
Grinding Example of Ultra Precision Double Column Surface Grinding Machine 2
世界最高の精度のベッド研削盤。ナガセインテグレックスの超精密門形静圧研削盤ORIGINseriesによる炭素鋼や定盤などの大型部品の平面研削加工事例をご紹介します。
Leave It to Us to Create Ultra Flat Surfaces for Large Machine Parts, Mold Plates, etc.
NAGASE's double column type grinding machine have achieved a level of precision that surpasses that of comparable machines of the same class in the plane machining of large precision machine parts such as machine tools and semiconductor manufacturing equipment, as well as large precision mold parts such as molds, plates, and bolsters. This is due to the extremely excellent straightness precision of the table-axis and crossrail-axis, and the fact that the machine precision remains almost unchanged even during long periods of machining without being affected by the ambient temperature environment. Please take a look at the grinding examples for the evidence over theory
Works

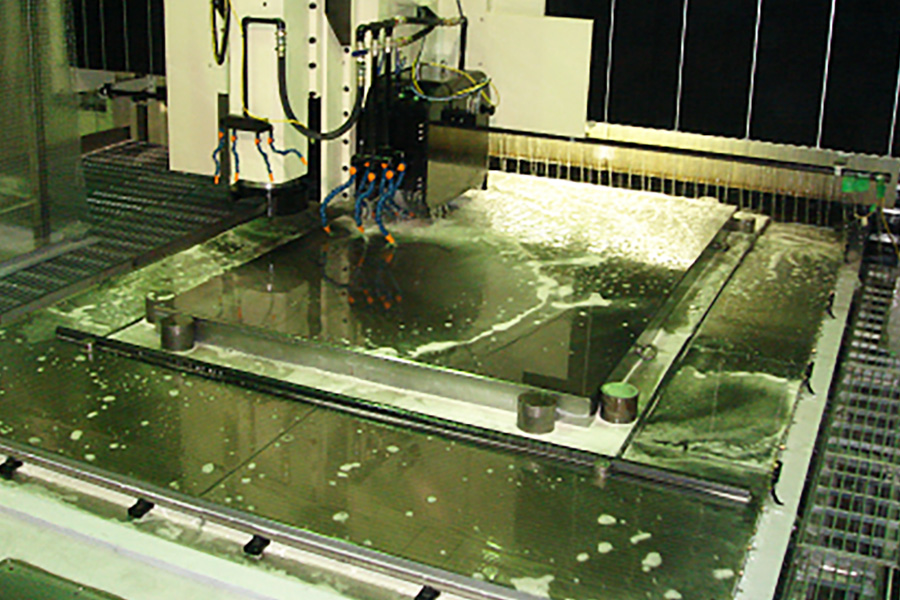

Surface Grinding of Machine Tool Table (S55C)
Material: S55C
Size: 2388 x 1440mm
Machine: ORIGIN-10025
Surface Grinding of Machine Tool Table (S55C)

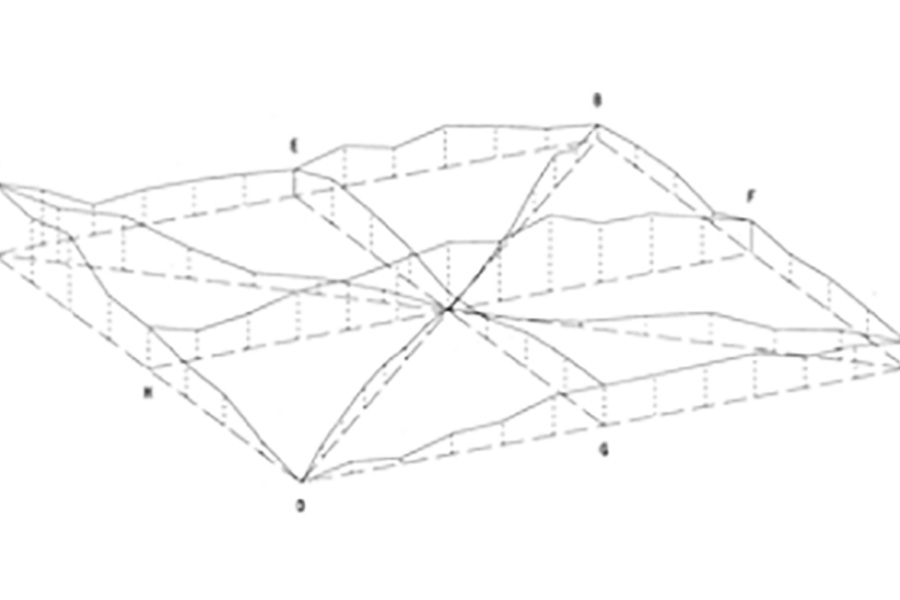

Flatness: TIR 1.1μm/2338 x 1440mm
Measurement device: Talyvel

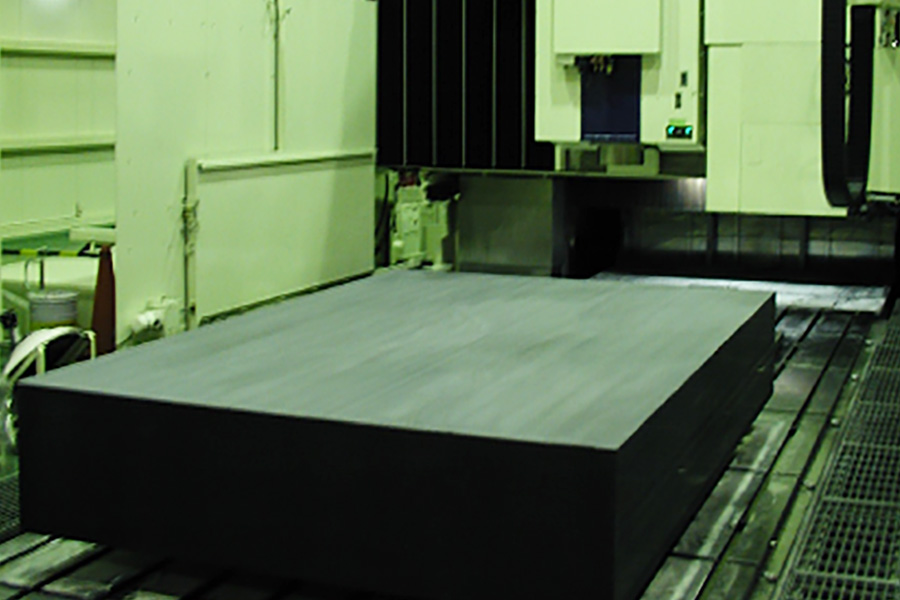

Ultra Flat Grinding of Stone Surface Plate (3000 x 2000 mm size)

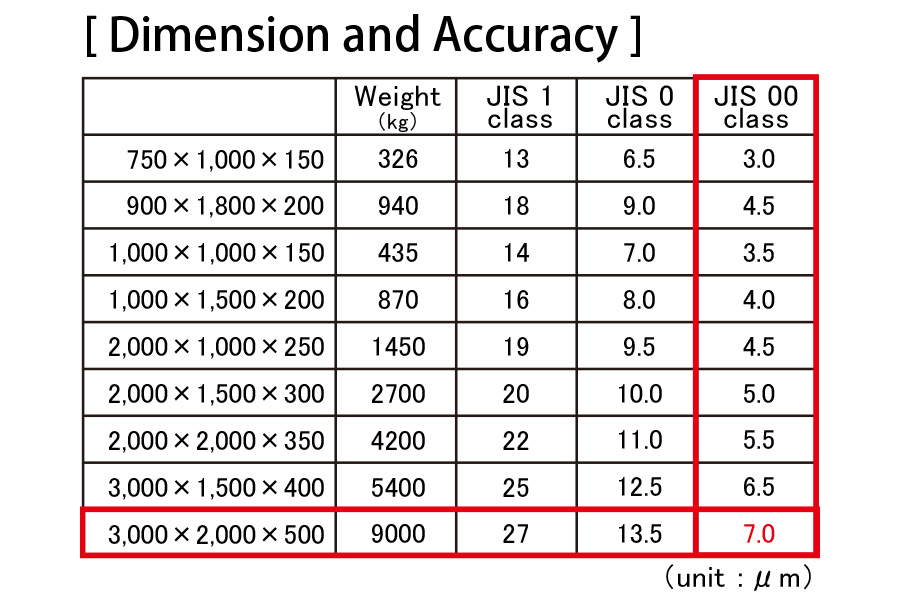

Accuracy: Better than JIS 00 class (5.61μm/3000 x 2000mm)
Material: Granite
Size: 3000 x 2000mm
Measurement device: Talyvel
Machine: ORIGIN-10025
Ultra Flat Grinding of Stone Surface Plate (3000 x 2000 mm size)
Accuracy: Better than JIS 00 class (5.61μm/3000 x 2000mm)
Equivalent to JIS 00 class in precision surface plate standards
