Straightness Grinding
Machining Example of Ultra-Precision Forming Surface Grinder 3
「究極のゼロ」。超精密研削盤のナガセインテグレックス。成形平面研削盤による工具鋼やSUS、ガラス、超硬材料などの鏡面研削加工事例をご紹介します。
Responds to The Ultimate Precision Required for T-Die and Master Gauge Manufacturing.

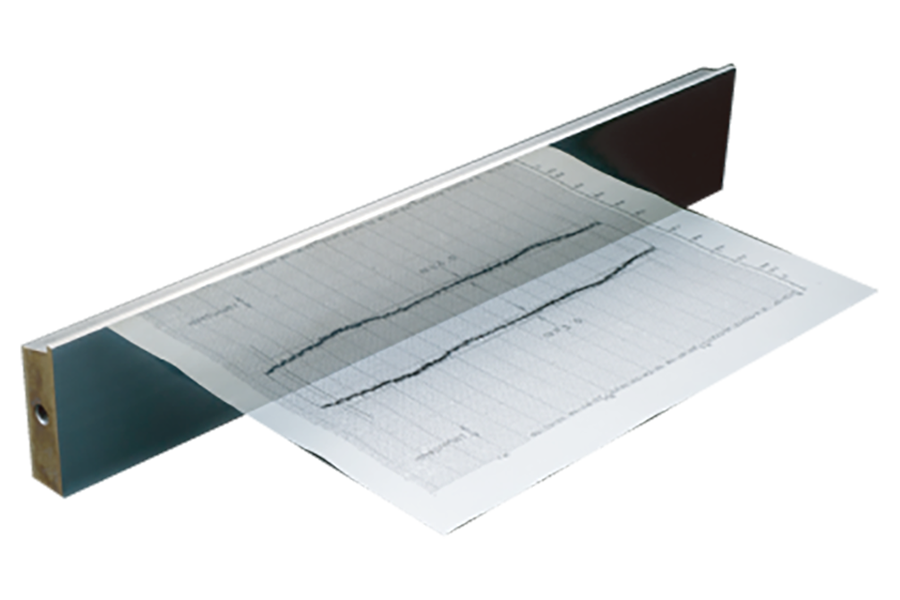

Straightness grinding (straightness machining) is the process of finishing the surface of a workpiece straight using a grinding wheel. Straightness is defined as the amount of deviation from a geometrically correct straight line in three dimensions and is required for T-die and slit die machining, regrinding, master gauging, and precision machine part manufacturing.
NAGASE's corporate concept of "Ultimate Zero" is derived from the manufacturing of "Machines with precision close to zero" with respect to these geometric tolerances.
Works

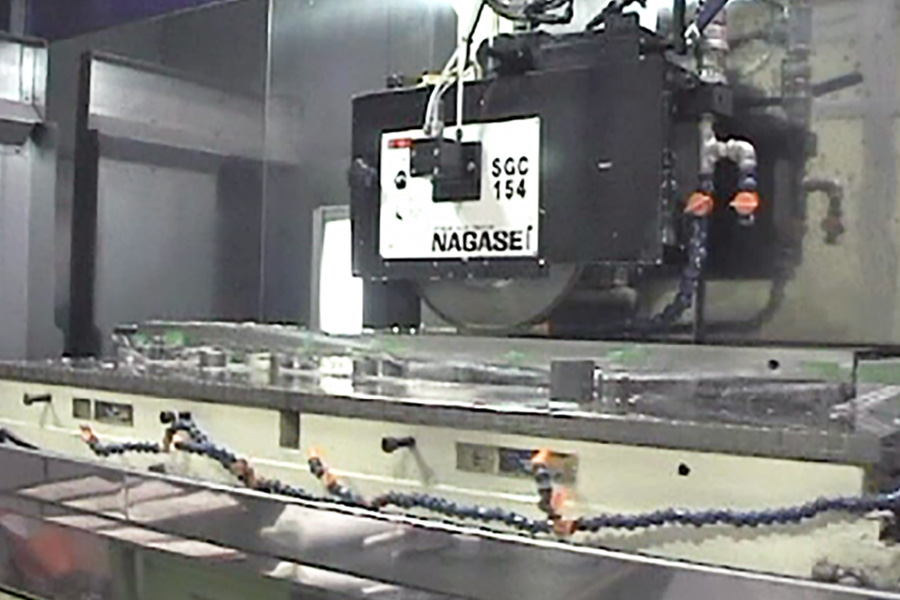

Ultra Precision Mirror Surface Grinding of T-Die
Straightness: 0.4μm/1500mm
Roughness: 20nmRa, 150nmRz
Material: SUS440C
Size: 1500 x 150 x 70mm
Machine: SGC-154SL2S-PCnc

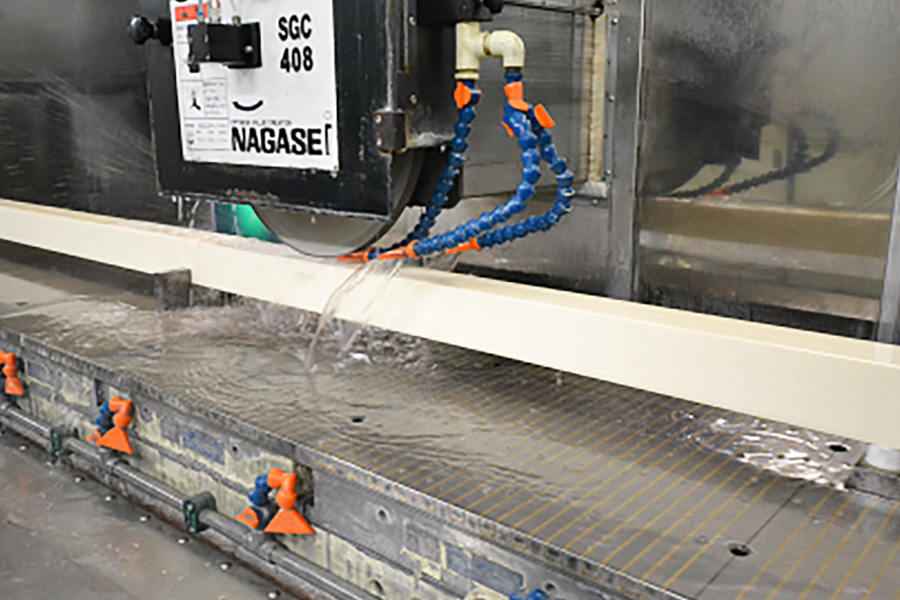

Ultra Precision Grinding of Master Gauges
Straightness: 2.0μm/3000mm
Material: Ceramics
Size: 3000 x 80 x 80mm
Machine: SGC-408S4-N3

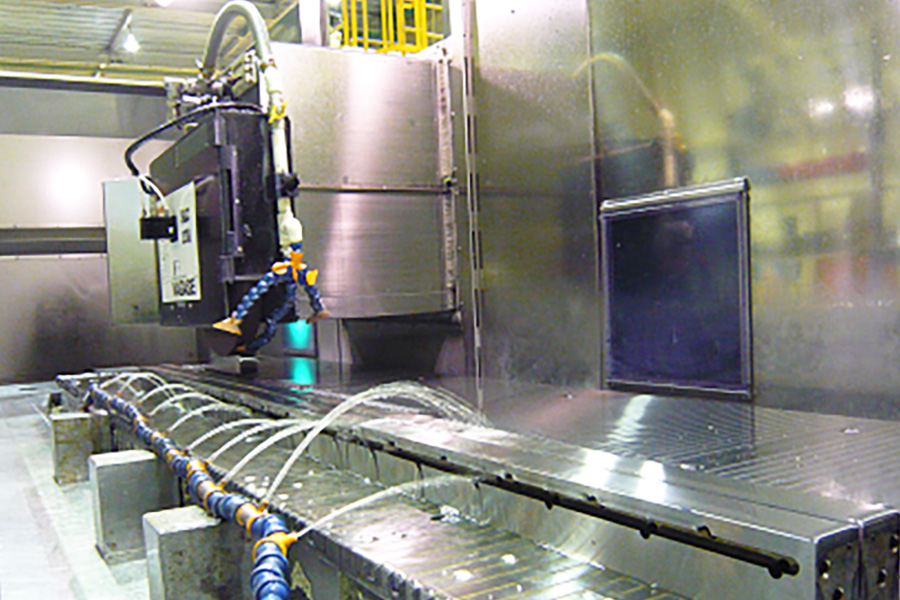

Straightness Grinding of High-Precision Machine Parts
Parallelism and flatness: less than 2μm
Material: SH-510
Size: 1800 x 60 x 40mm
Machine: SGC-254SLS2-PCnc

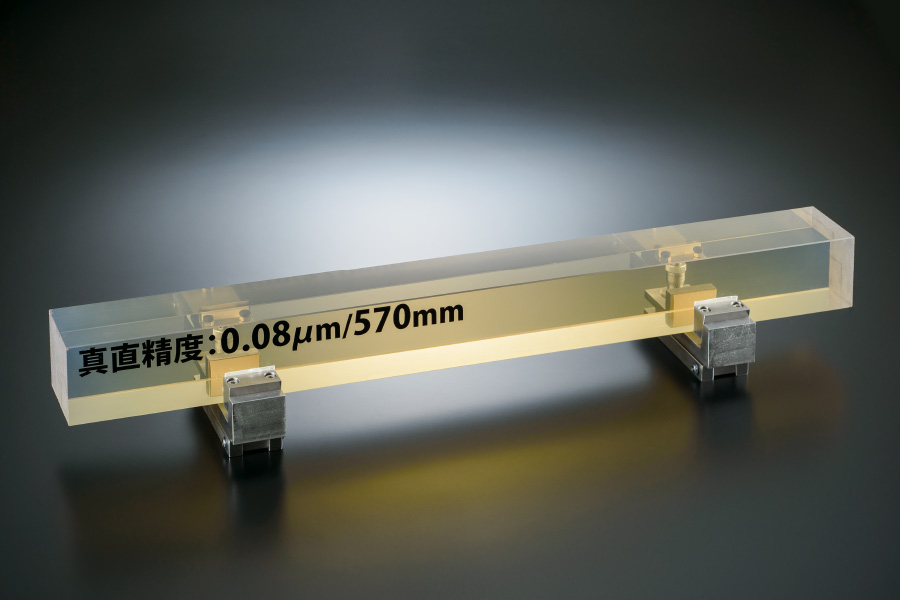

Ultra-Precision Straightness Grinding of Glass Gauges
(Use the optional SMART SURF UP)
Straightness: 0.08μm/570mm
Material: Low thermal expansion glass
Size: 570 x 65 x 55mm
Machine: SGC-840αS4-Zero3
