ULTRA PRECISION DOUBLE COLUMN TYPE SURFACE AND PROFILE GRINDING MACHINE
SGX-104α·126αPursuit of the Highest Precision and Quality
High-End Model of the New Generation SGX Series
ULTRA PRECISION DOUBLE COLUMN TYPE SURFACE AND PROFILE GRINDING MACHINE SGX-104α·126α
Pursuit of the Highest Precision and Quality
High-End Model of the New Generation SGX Series
Ultra-Precision Double Column-Type Multi Surface Grinding Machine SGX-104α and 126α

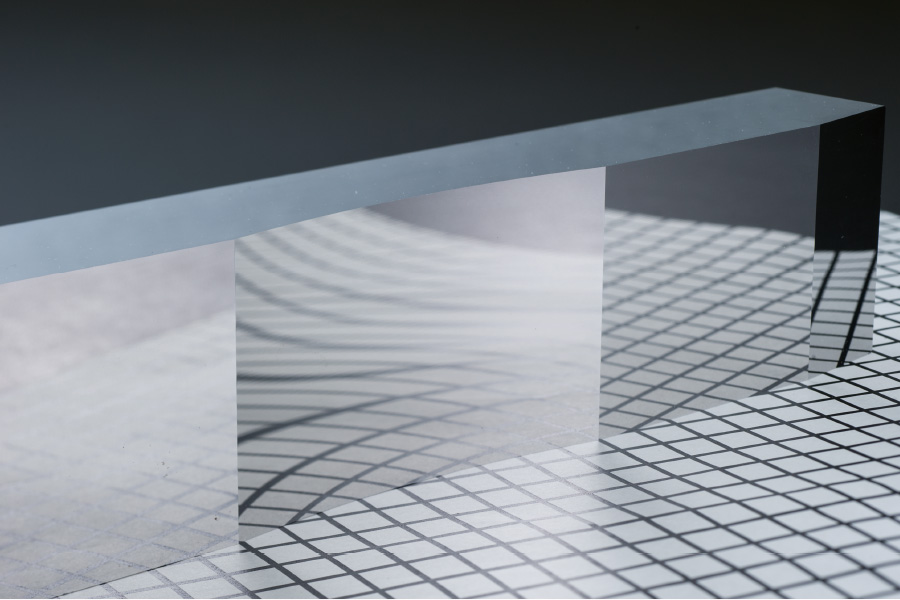

Ideal body structure by NAGASE's original IGTARP DESIGN. Compared with conventional machines, the static rigidity of the machining point has been doubled and the dynamic rigidity has been improved by 1.2 times. In addition to surface grinding, the machine realizes 2-axis and 3-axis synchronized shape creation machining and multi-piece automatic machining with overwhelming accuracy and quality.
Outstanding shape accuracy and quality not only for flat surfaces but also for three-dimensional shapes.
IGTARP DESIGN has adopted a three-point support high-rigidity bed, A unique hydrostatic guideway, linear motor drive system for the left and right table guideway and cross rail guideway, also adopted a 15kW high output grinding wheel spindle motor. For SGX-104α, grinding wheels up to ⌀405 x 50mm wide can be attached. For SGX-126α, grinding wheels up to ⌀510 x 75mm wide can be attached.
NAGASE's unique IGTARP DESIGN is used to achieve smaller size, lighter weight, and increased rigidity.
Installation area is reduced by 50% compared to conventional single-column machines.
Installation surface dimensions are 4.0 x 2.0 m for SGX-104α standard specifications and 4.9 x 2.54 m for SGX-126α standard specifications.
The "SMART THERMONICS®" further improves energy consumption by half compared to conventional models.
50% smaller space than conventional single-column machines

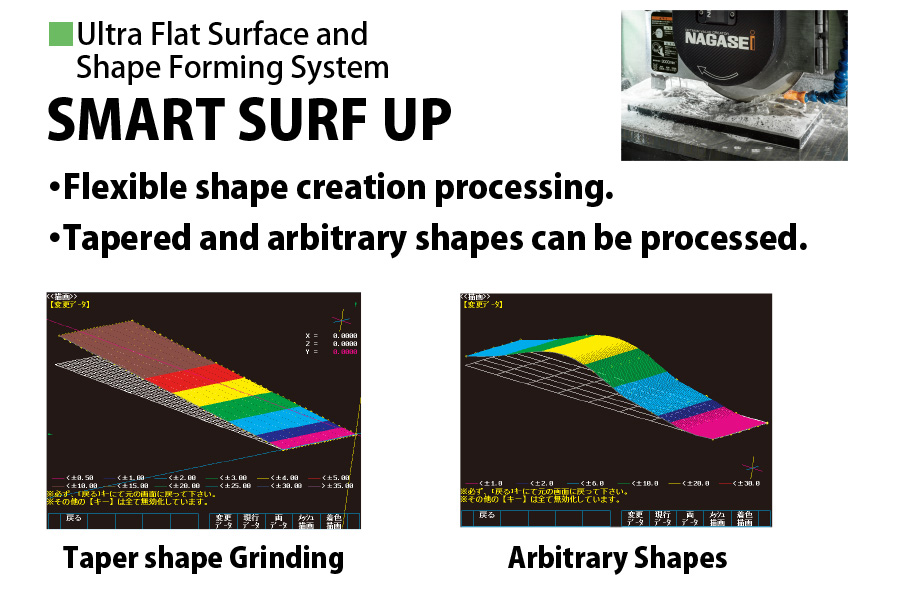

Equipped with Zero, an interactive CNC control system with a variety of functions.The Zero also supports compound shape grinding, multi-part grinding, crown grinding, and contour grinding as options.Smart 3D Probing" for 3D measurement on the machine, "SMART SURF-UP®" for machining any shape at will, and "SMART UNDULATION UP" for automatic straightening processing on a magnetic chuck without a dedicated jig are also available as options.
50% smaller space than conventional single-column machines
The ultra-precise machine motion characteristics of the machine enable high-precision on-machine measurement.

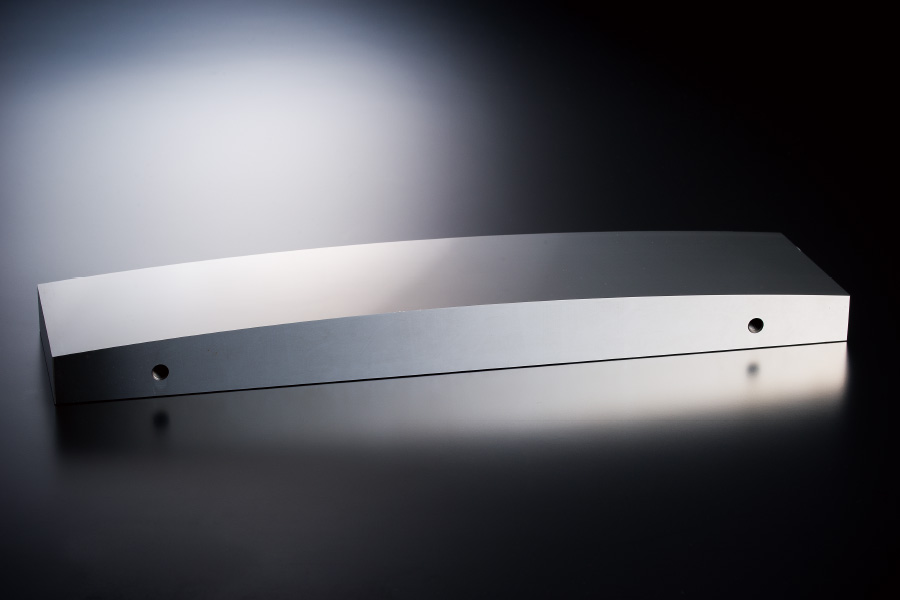

Compound shape grinding, multi-part grinding, crown grinding, and contour grinding can also be performed at will.
Machine operation is controlled by corrected values without changing the direct coordinate display.
Simple shaping of the workpiece shape and tilt correction are possible.

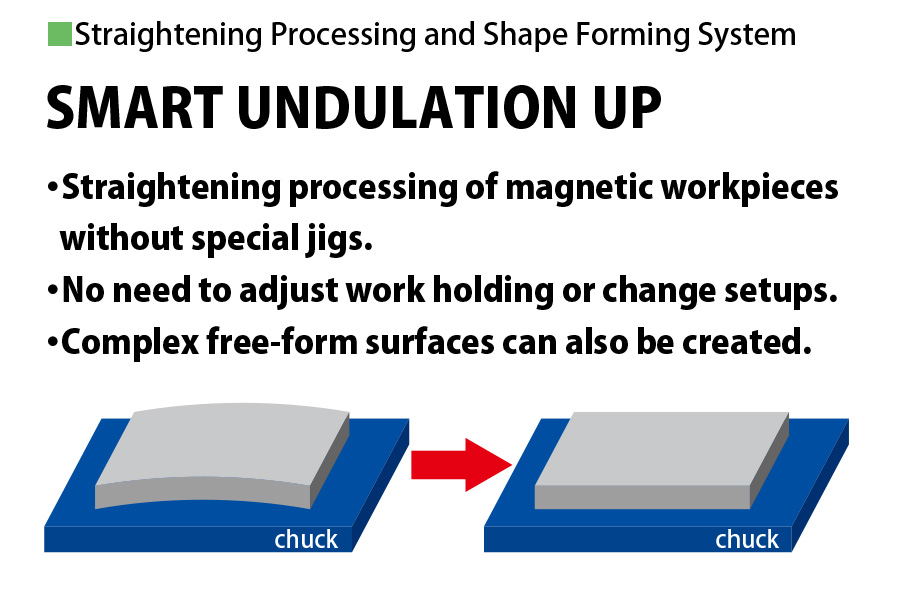

Automatic straightening processing on a magnetic chuck without using a special jig.

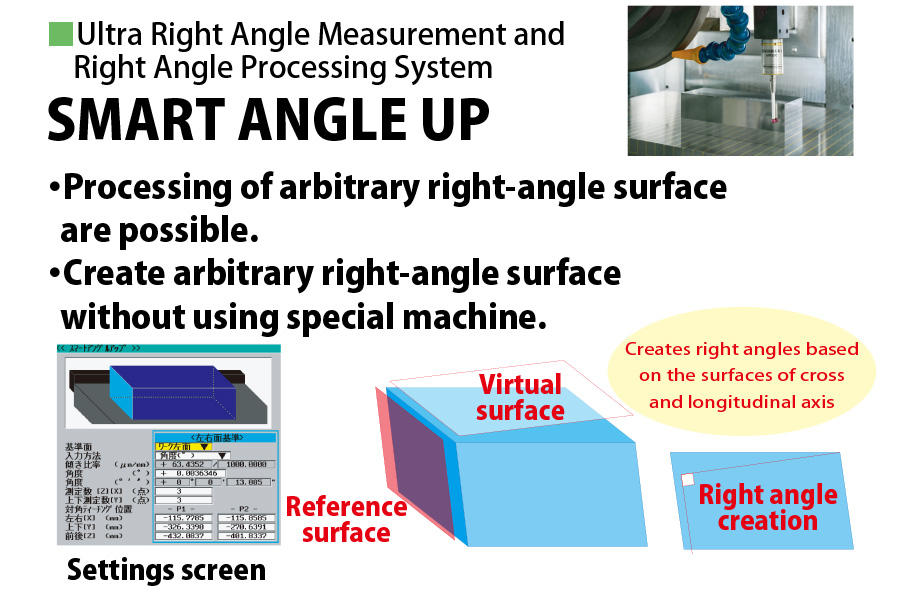

Easy measurement of right-angle surface and processing of arbitrary right-angle surface are possible without using special jigs.
It displays the vibration of the grinding wheel rotation, making ultra-precision grinding easier.
| Machine/Items | Size | Chuck Size | Table Working Area (length x width) |
Table Top to Spindle Center |
Vertical Min. set unit | Wheel Size (OD x W x ID) |
Wheel Axis |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kW | ||
| SGX-104α | 104 | 1000 x 400 | 1200 x 460 | 625 | 0.0001 | ⌀250～405 x 38～50 x ⌀127 | 15 |
| SGX-126α | 126 | 1200 x 600 | 1500 x 695 | 825 | 0.0001 | ⌀250～510 x 38～75 x ⌀127 | 15 |
Customers who are thinking of introducing new facilities are welcome to ask us for test machining or visit our factory. Please feel free to consult us. Please inform us of facility conditions, size and material of machining workpieces, machining time, etc. in detail. Depending on the contents of your request, sales personnel in your district will make a proposal to meet your requirements.
