Lapping Process to Change the Efficiency and Accuracy of Large SiC and Ceramic Components.
Polishing (Lapping) is a processing method that uses loose abrasive grains (slurry) to polish the surface of a wafer or workpiece. Also called mirror polishing or lapping process. NAGASE has developed an ultra-large lapping machine for high-precision machining of large ceramic parts and sapphire wafers, which are difficult to mirror-finish by grinding. Facing accuracy of less than 1μm at ⌀2m. The amount of abrasive grains processed is large, enabling ultra-mirror finishing of SiC, ceramic parts, sapphire, and other materials at approximately twice the efficiency of conventional methods.
Works

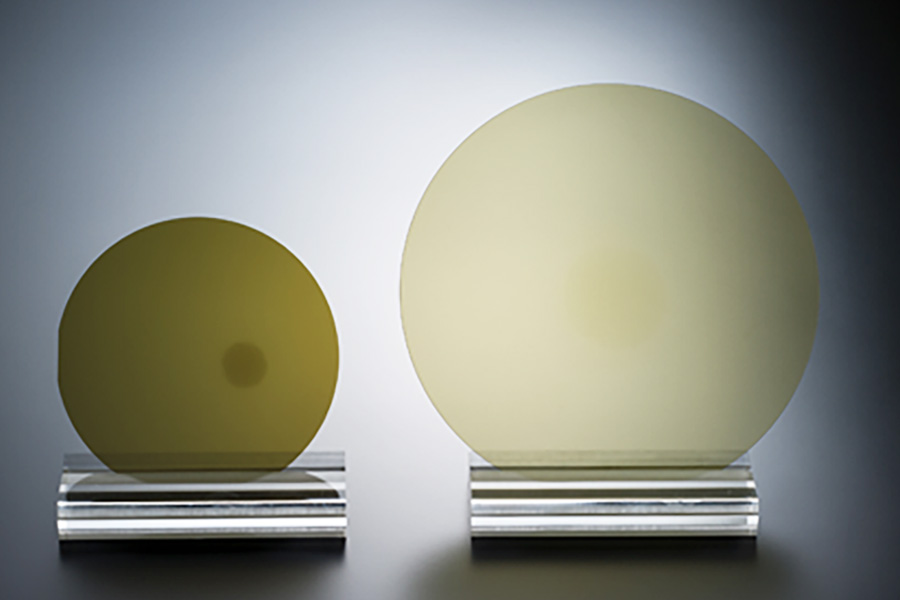

Lapping of SiC Wafer (High efficiency, Mirror finish)
Rate: 1.0μm/min (rough processing)
Flatness: 0.93μm/4" x 3 sheets
Roughness: 0.8nmRa, 4.9nmRz
Material: Single-crystal SiC wafer
Size: 4" x 3 sheets
Machine: PLM-610sh
Ultra Mirror Lapping of 6" Sapphire
Roughness: 0.6nmRa, 3.9nmRz
Flatness: 0.5μm
Material: Sapphire
Size: 6"
Machine: PLM-610sh
Ultra Mirror Lapping of Alumina Ceramics
Flatness: 0.53μm
Roughness: 1.8nmRa, 11nmRz
Material: Aluminum ceramics
Size: ⌀125mm
Machine: PLM-610sh
Ultra Mirror Lapping of Crystallized Glass
Roughness: 4.4nmRa, 0.65nmRz
Material: Crystallized glass
Size: ⌀95mm
Machine: PLM-610sh
