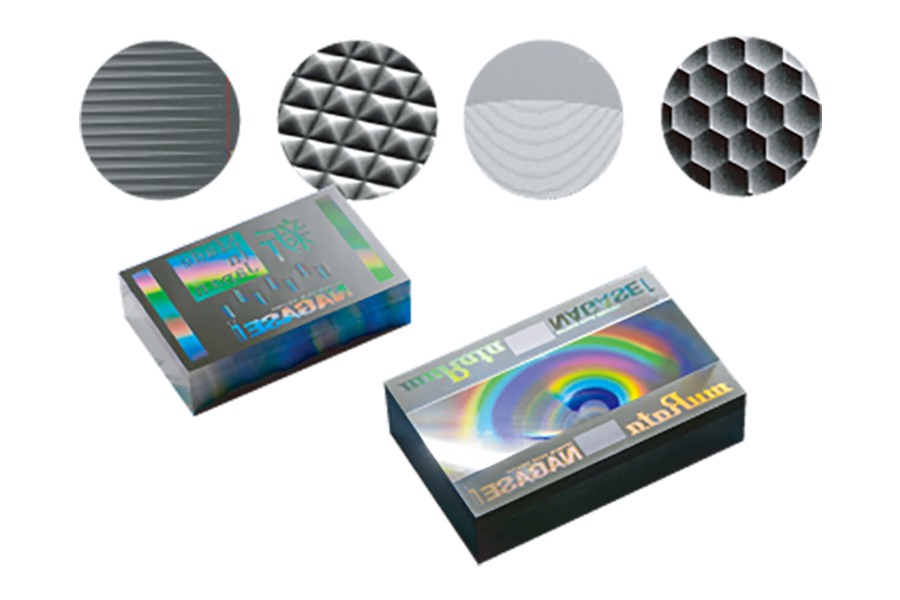

Micro Machining of Light Guide Plate, etc.
Machining Example of Micro Machine(Nano machine) 2
「転写誤差ゼロ」を追求できるナノ加工機はナガセインテグレックス。微細加工機NICseriesによる導光板などの微細加工・プリズム加工・微細パターン加工など事例をご紹介。
Ideal for Processing Fine Patterned Shapes such as Light Guides, Diffraction Gratings, Lens Arrays, etc.
Micro machining (micro grooving) is the cutting of periodic structures such as lines, curves, and dots on the surface of NiP and other workpiece using diamond tool. Typical examples include linear and cross prism processing for light guide plates and reflectors, Fresnel lens processing, and micro lens array processing. NAGASE's nano machines are used in a wide range of fields because they have features that maximize the advantages of cutting nano processing, such as "large area processing, excellent straightness, and good surface roughness.
Works

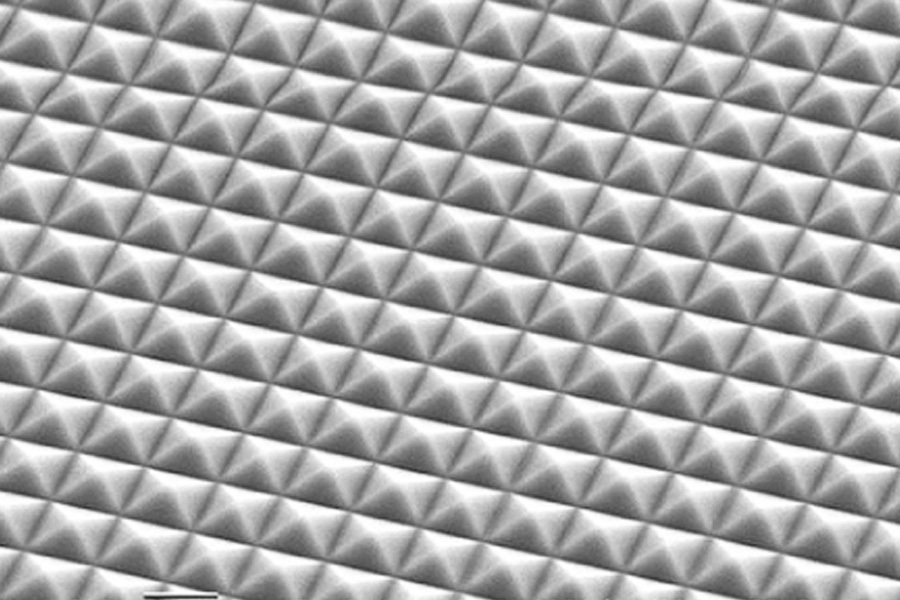

Prism Process (1µm cross-cut sheet process)
Prism height: 1μm
Material: Non-electrolytic NiP
Size: 10 x 10mm
Machine: NIC-300S5-N3

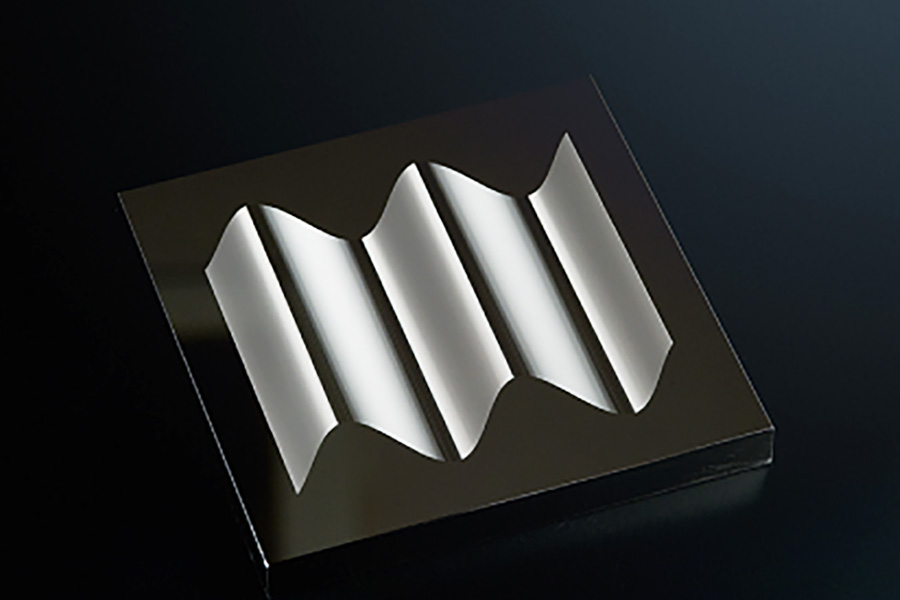

Sin Curve Cutting (Simultaneous 3 axes control)
X, Y, Z axes synchronization accuracy: nano meter
Amplitude: 5nm Cycle: 40nm
Pitch: 200μm
Material: Non-electrolytic NiP
Size: 100 x 100 x 10mm
Machine: NIC-300S5-N5

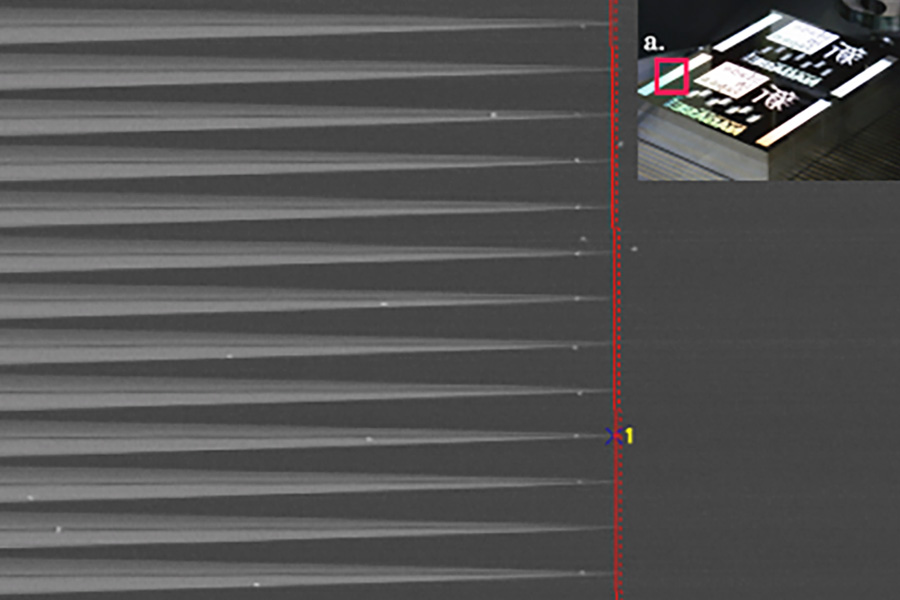

Linear Prism Process (Prism sheet process)
X and Z axes interpolation accuracy: Less than 20nm
Material: Non-electrolytic NiP
Size: 70 x 45 x 10mm
Machine: NIC-300S5-N5

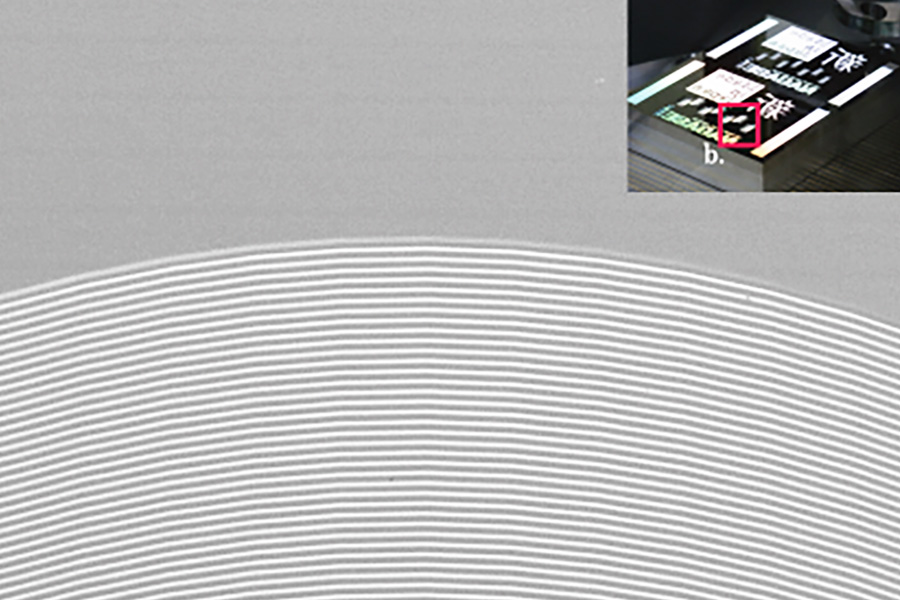

Curved Micro Machining
X, Y, C axes interpolation accuracy: Less than 150nm ※No quadrant glitches
Material: Non-electrolytic NiP
Size: 70 x 45 x 10mm
Machine: NIC-300S5-N5

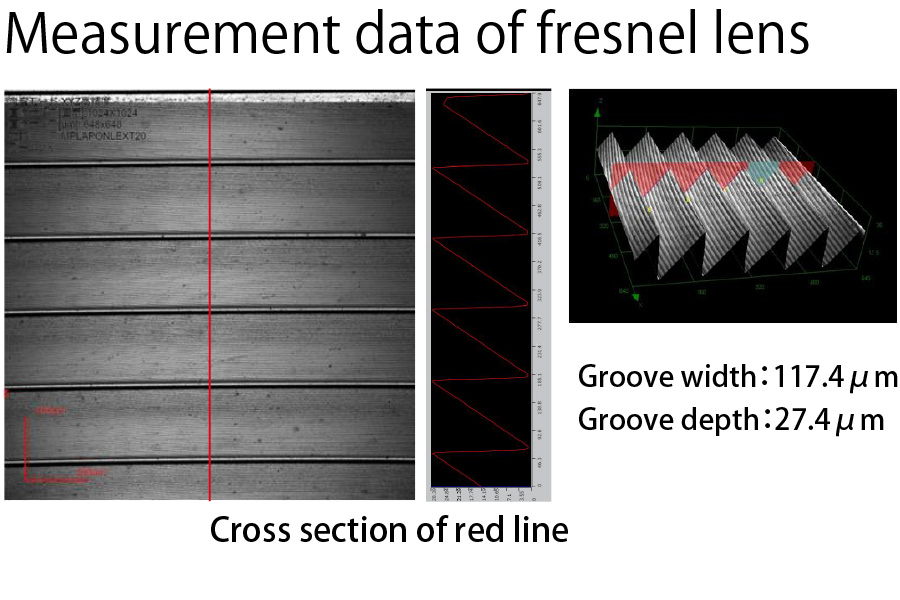

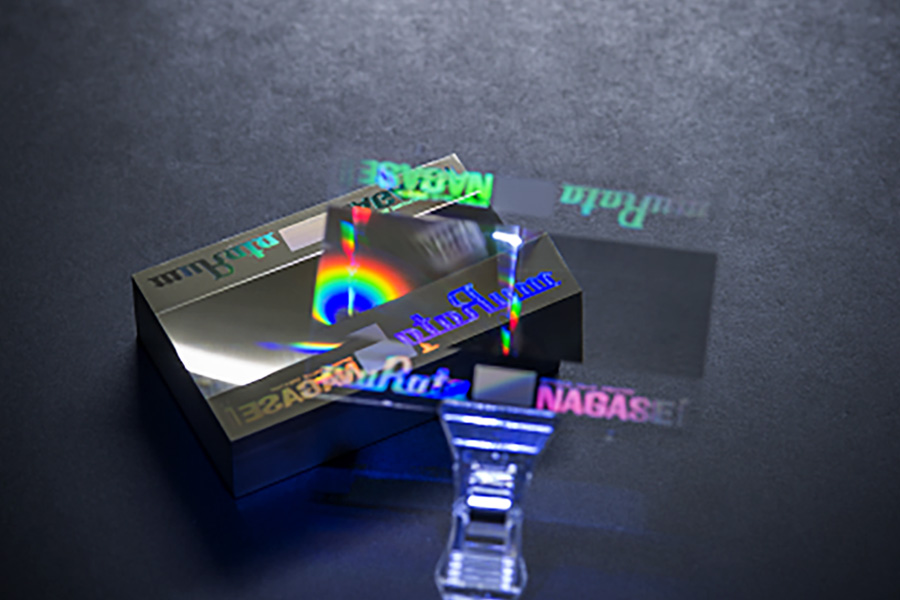

Fresnel Lens Mold Process
Number of grooves: Total 35, 605
Groove width: 117.4μm
Groove depth: 27.4μm
Material: Non-electrolytic NiP
Size: 100 x 50 x 10mm
Machine: NIC-300S5-N5
Groove width: 117.4μm
Groove depth: 27.4μm

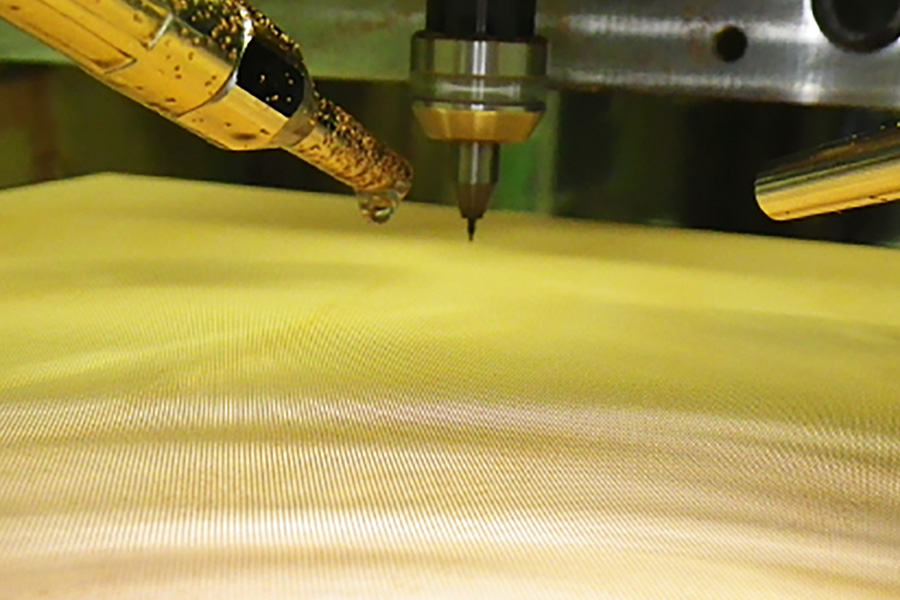

Micro Lens Array Process
(Large area, arbitrary shape, high aspect ratio)
Number of microlens arrays: 356, 130
Roughness: Nano meter level
Material: Copper plate
Size: 297 x 210mm
Machine: NIC-300S5-N5

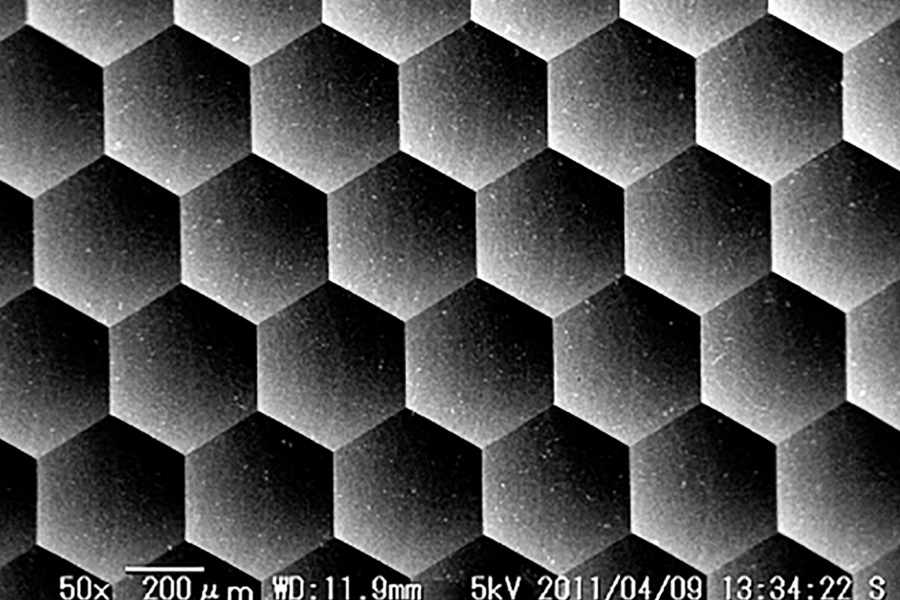

Dimple Pattern Process
(No belly button, mirror surface, high-speed process)
Roughness: 2nmRa, 15nmRz
Hole diameter: ⌀0.5mm Hole depth: 50μm
Material: Brass
Size: ⌀36 x 10mm
Machine: NIC-300S5-N5

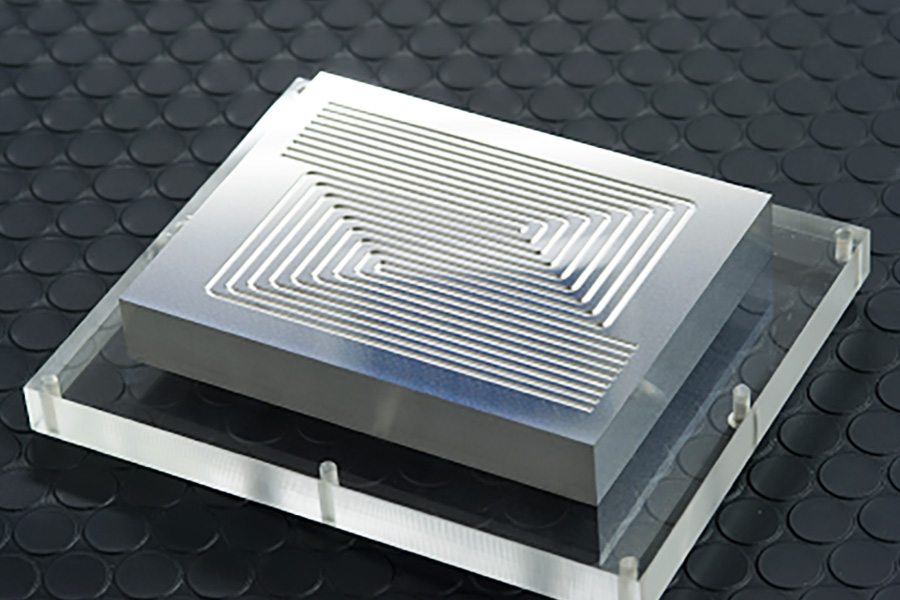

Ultra-Mirror Milling Process
(Separator flow channel of fuel cell)
Roughness: 35nmRa, 232nmRz
Corner contour accuracy: ±1μm
Material: HPM38
Size: 130 x 100 x 20mm
Machine: NIC-300S5-N5
