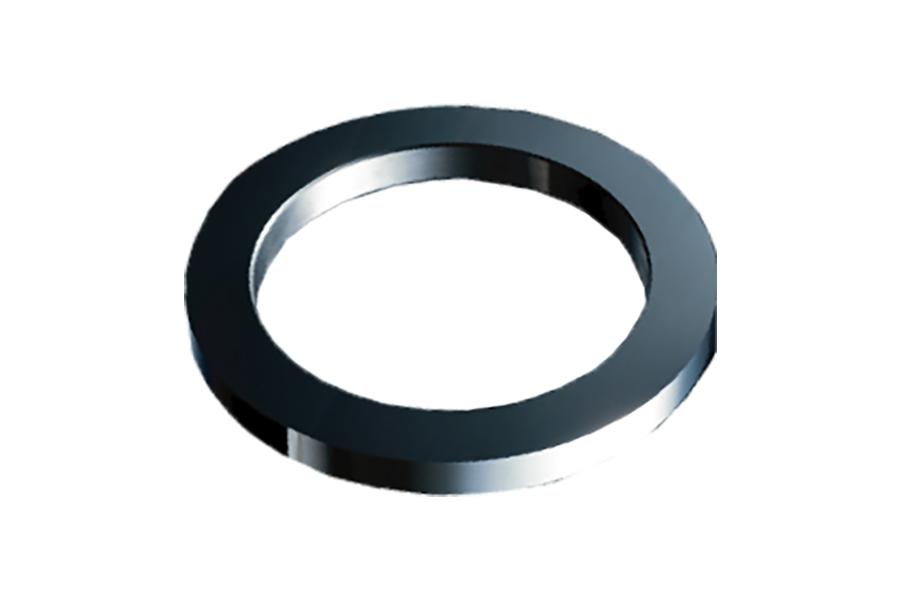

Rotary Surface Grinding
Grinding Examples of Rotary Surface Grinding Machine
「世界最高の大物加工を実現する」。ナガセインテグレックスの超精密ロータリー平面研削盤RGseriesによるSKH材やSCM材、超硬材料などのロータリー平面加工事例をご紹介します。
For High-Precision Machining of Round and Flat Workpieces such as Industrial Knives, Spacers, Ceramics, etc.
Rotary surface grinding refers to a grinding process that uses a rotary table among those that use a grinding wheel to machine the flat surface of a workpiece. Vertical-axis and horizontal-axis systems are available and are used for highly efficient machining of circular and square flat workpieces. Of these, NAGASE mainly manufactures large high-precision horizontal rotary surface grinding machine. No other machine but NAGASE is capable of consistently machining nano-order surface roughness and parallelism/flatness of less than 1μm, despite its large size.
Works

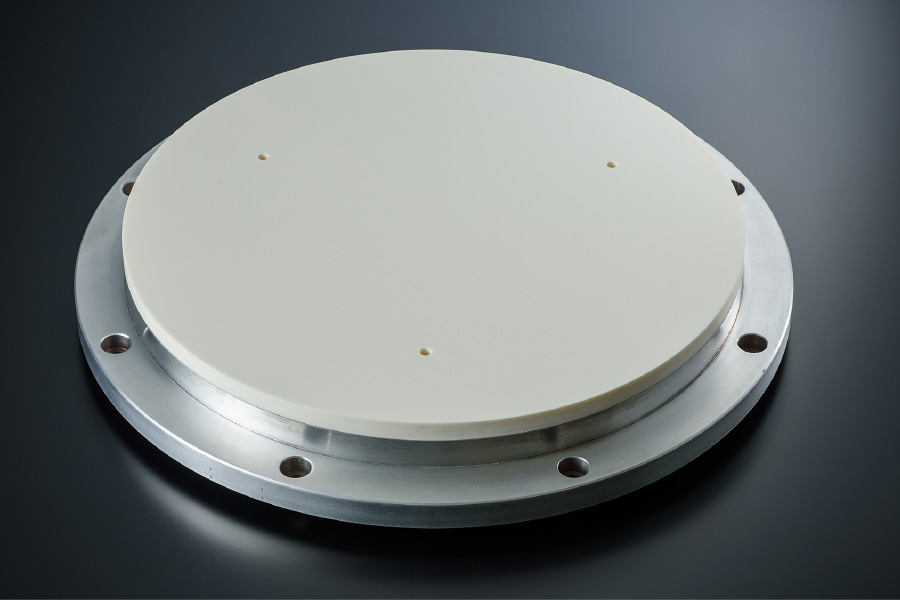

Ultra Precision Rotary Surface Grinding of Electrostatic Chuck
Flatness: 0.6μm/⌀300mm
Roughness: 0.15μmRa, 1.39μmRz
Material: Alumina Ceramics
Size: ⌀300 x 40mm
Machine: RG-700S4-N2

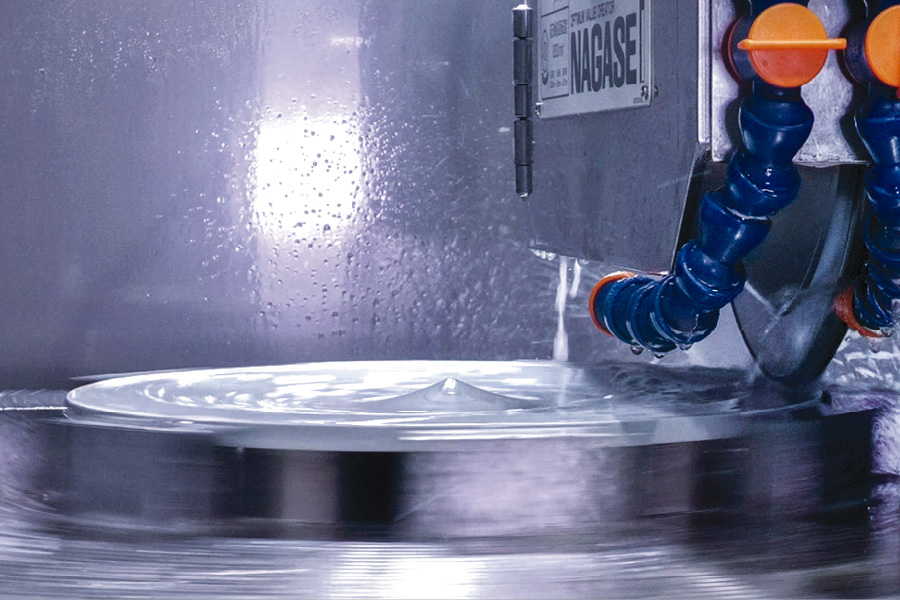

Ultra Precision Rotary Form Grinding (Cordierite)
Form accuracy: 1.7μm/⌀310mm
Material: Cordierite
Size: ⌀310 x 15mm
Machine: RG-700S4-N2

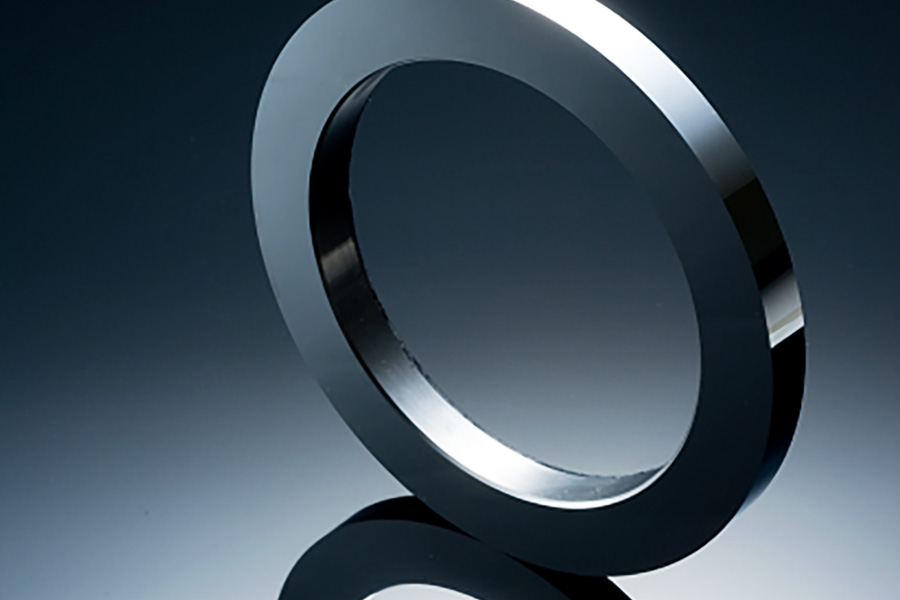

Rotary Surface Grinding (Carbide) /
Side Cutting with a Single Point Tool
Roughness: 2nmRa, 22nmRz
Flatness: 0.66μm/⌀135mm
Material: Carbide+BHC coating
Size: ⌀135 x 13mm
Machine: RG-500SLS2-N2

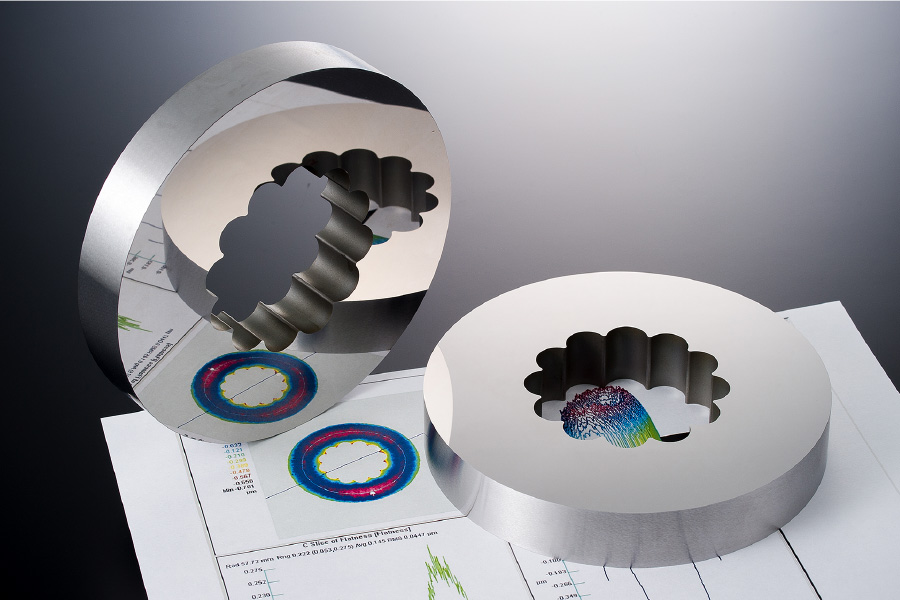

Mirror Surface Grinding by Rotary Grinder (YXR7)
Roughness: 11nmRa, 92nmRz
Flatness: 0.8μm/⌀150mm
Material: YXR7
Size: ⌀150 x 15mm
Machine: RG-500SLDS-Neo2

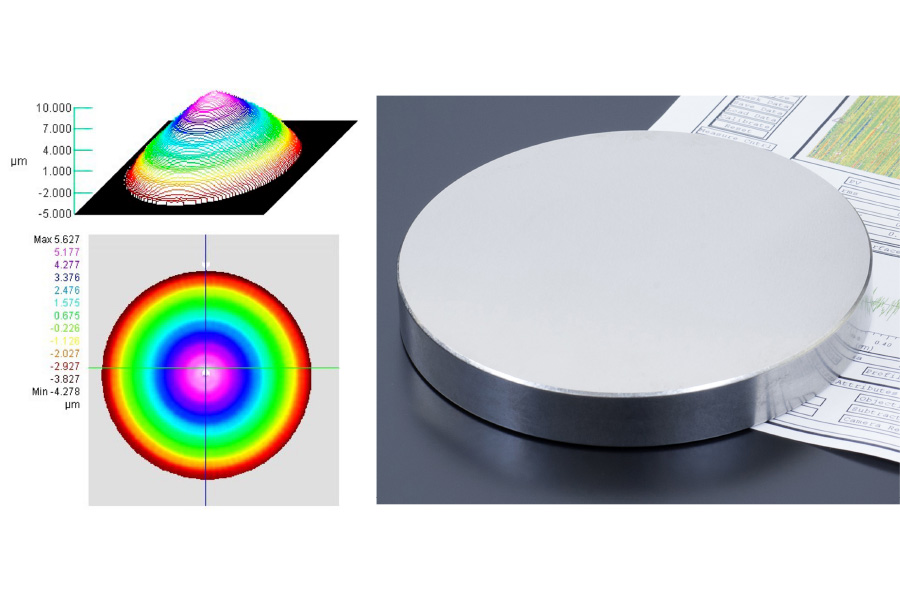

Ultra Precision Rotary Grinding with Synchronized 2 axes
Form accuracy: 0.09μm/10μm convex shape
Material: SKH-51
Size: ⌀150 x 20mm
Machine: RG-500SLDS-Neo2

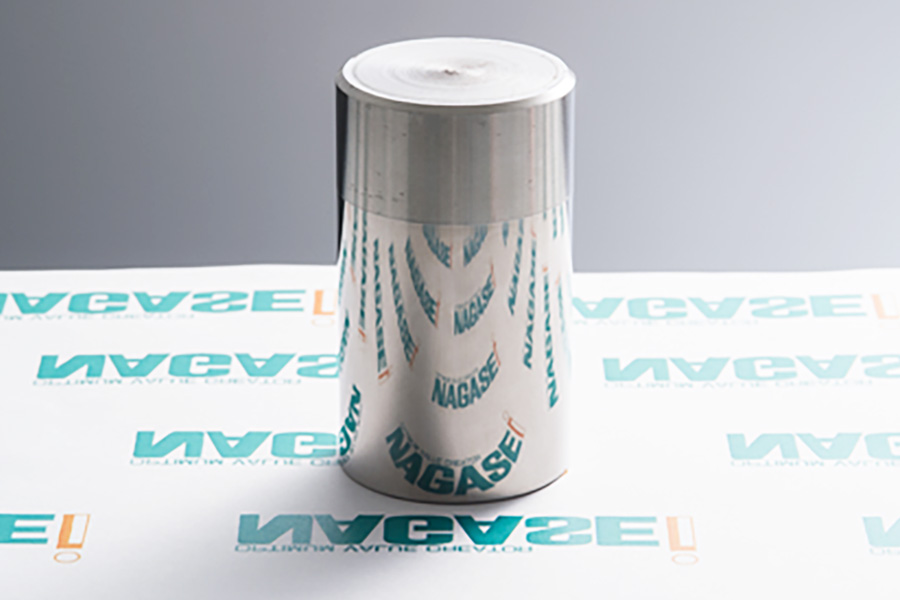

Cylindrical Grinding by Rotary Grinder (S55C)
Roughness: 18nmRa, 121nmRz
Roundness: 0.5μm
Material: S55C
Size: ⌀40 x 50mm
Machine: RG-500SLS2-N2 + vertical wheel axis on the grinder
