Micro Grooving
Machining Example of High-Reciprocating Forming Grinding Machine 3
「サブミクロンの形状精度」を追求できる研削盤はナガセインテグレックス。ハイレシプロ成形研削盤による超硬パンチ・ダイ、セラミックスの成形研削・コンタリング加工事例をご紹介します。
For Thin and Deep Grooving of Tie-Bar Cut Punches, Connector Terminals, etc.
Micro grinding (deep grooving and thin grooving) is the process of putting narrow-pitch, even or uneven groove shapes into a workpiece using a grinding wheel generally formed 1 mm or less in width. Used for tie-bar cutting punches for semiconductor leadframes and cavi-cores for connector terminals. NAGASE's forming surface grinding machine use high-reciprocating form grinding machine and a newly developed smart grooving function to achieve this process, which was previously performed by craftsmen, with high precision, high efficiency, and economy.
Works

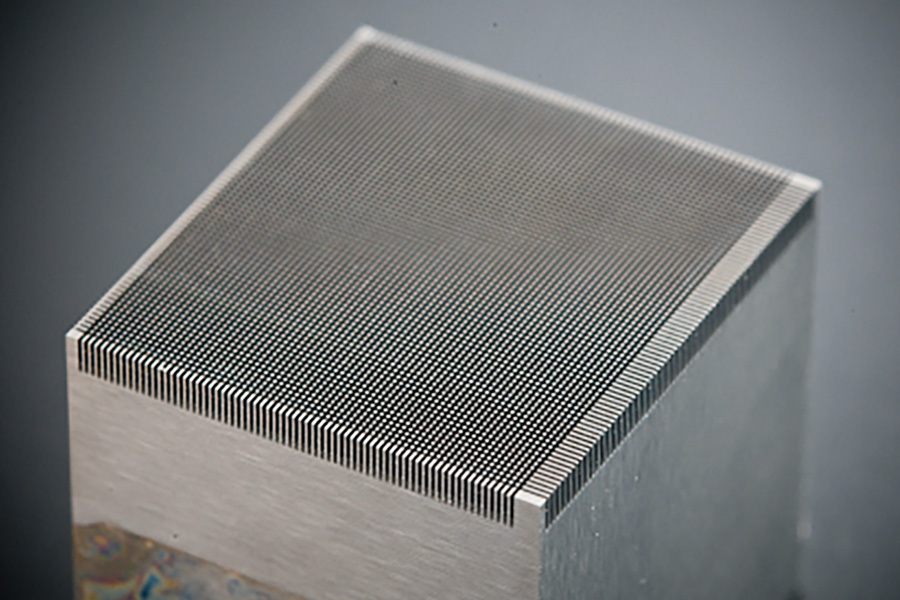

Micro-Groove Grinding of Carbide (80μm Square Pillar Process)
Pitch accuracy: 1.5μm
Width: 80μm Depth: 1mm
Material: Carbide
Size: 16 x 16 x 12mm
Machine: SHSD-80AL2S-PCnc

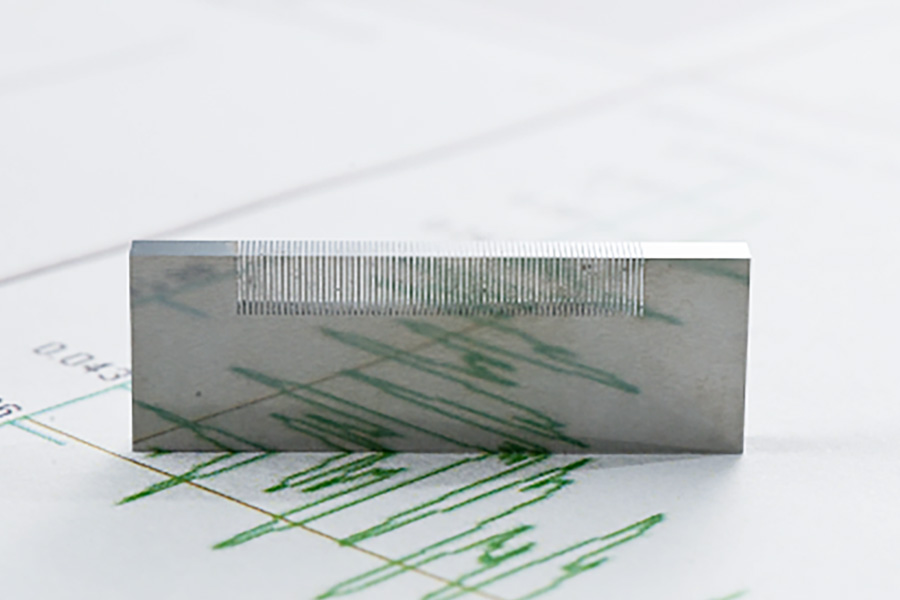

Ultra-Thin Grooving (Nesting of connector terminal molds)
Pitch accuracy: 0.8μm
Width: 80μm Depth: 3mm
Material: STAVAX
Size: 30 x 10 x 2.5mm
Machine: SHSD-80AL2S-PCnc

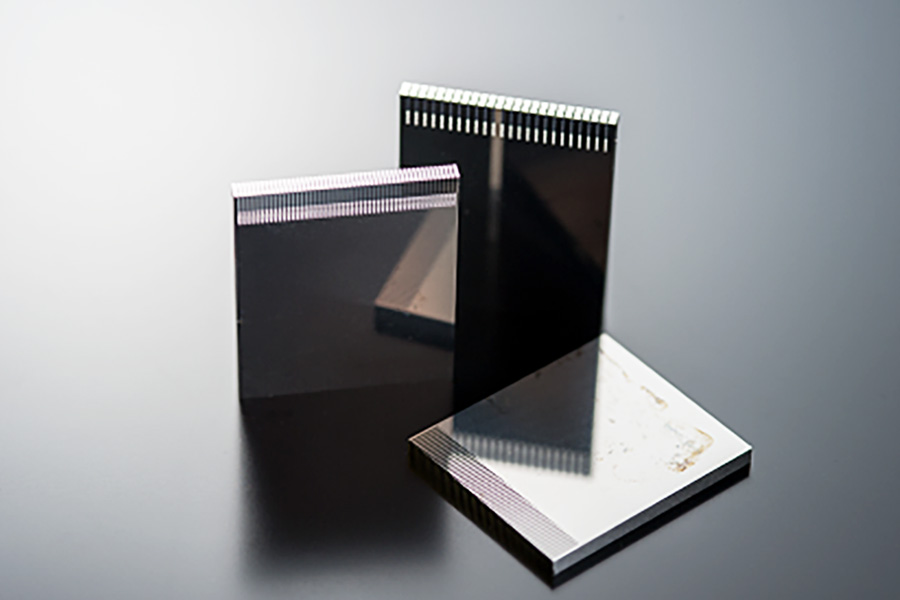

Grooving of Tie-Bar Cut Punch (Carbide)
Pitch accuracy: 1.1μm
Width: 260μm Depth: 4mm
Material: Carbide
Size: 30 x 20 x 1.6mm
Machine: SHL-315ALS2-Zero5

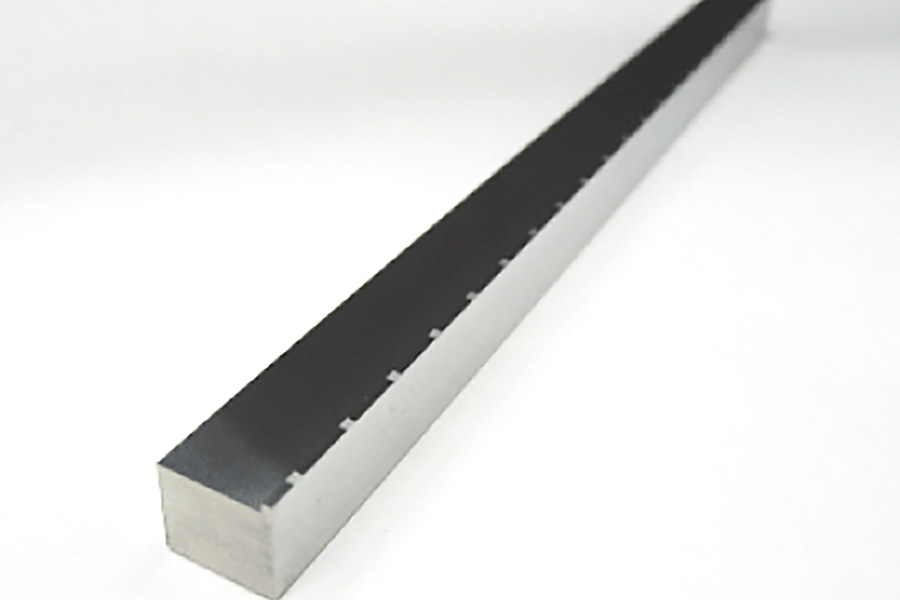

Equal Pitch Grooving (SKH-51)
Pitch accuracy: 1.0μm
Material: SKH-51
Size: 200 x 13 x 13mm
Machine: SGC-630αS4-Zero3

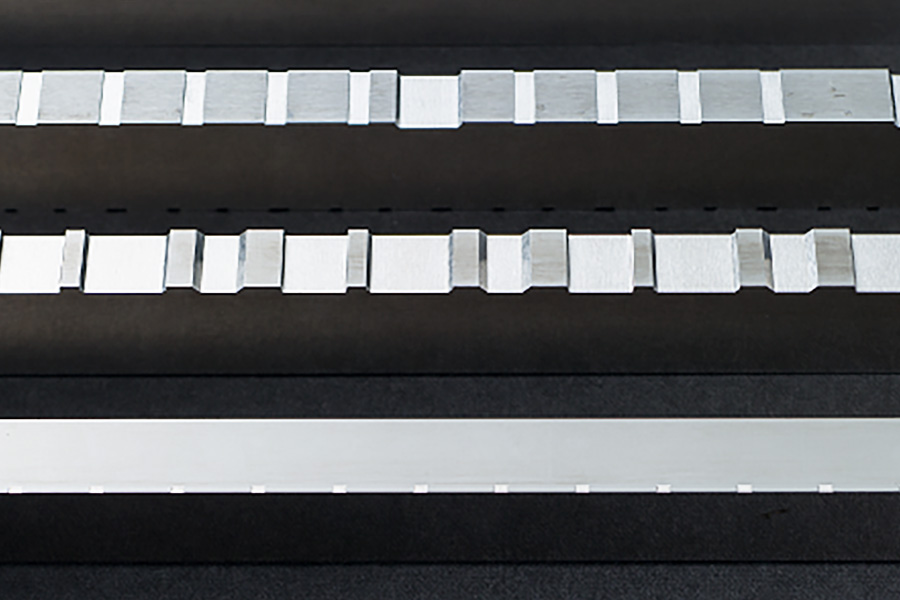

Wheel Form Grooving (HPM38)
Pitch accuracy: 1.0μm
Form accuracy: ±1.5μm
Material: HPM38
Size: 150 x 15 x 10mm
Machine: SGE-520SLD2-Zero3

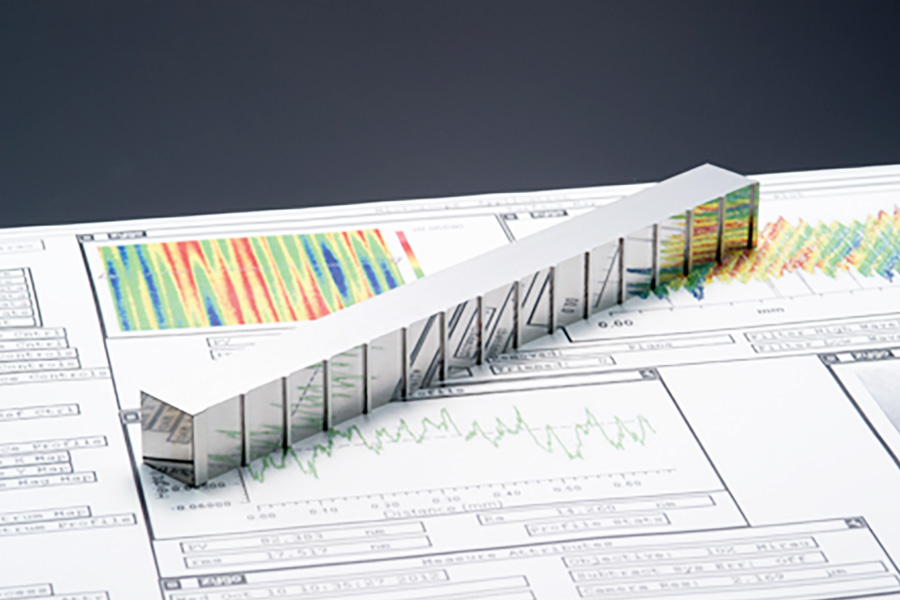

Grooving on Sealing Mold for Semiconductors (SKD-11)
Pitch accuracy: 1.0μm
Roughness: 18nmRa, 180nmRz
Material: SKD-11
Size: 175 x 15 x 15mm
Machine: SGE-520SLD2-Zero3

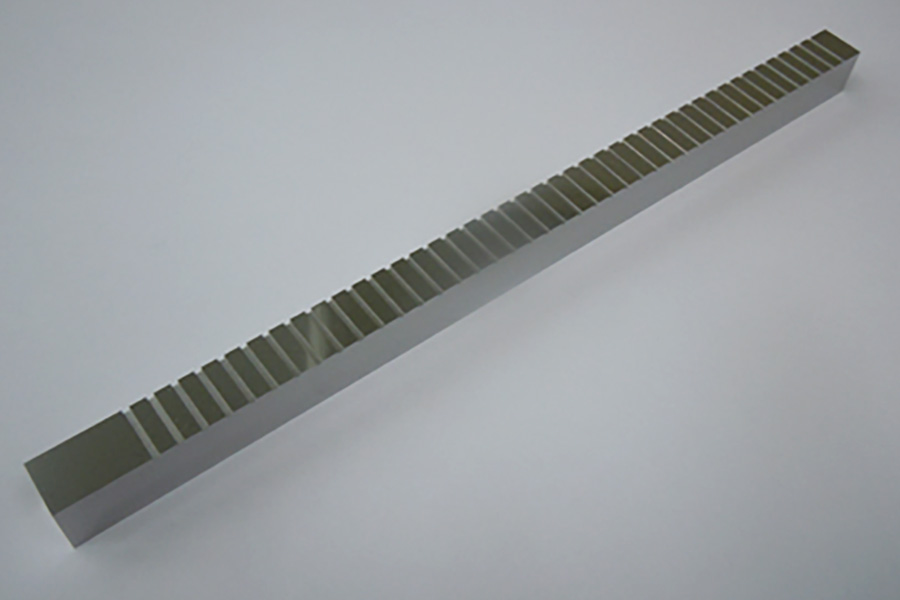

Grooving on Sealing Mold for Semiconductors (SKH-55)
Pitch accuracy: ±0.9μm
Material: SKH-55
Size: 220 x 13 x 13mm
Machine: SGC-630αS4-Zero3
