Drawing Die Internal Gear Grinding
Grinding Examples of Multiprofile Grinding Machine
「目指すは世界一の歯車研削加工精度」。ナガセインテグレックスの超精密マルチプロファイラーNGA-84による超硬絞り金型内歯車の自由曲面の鏡面研削加工の事例をご紹介します。

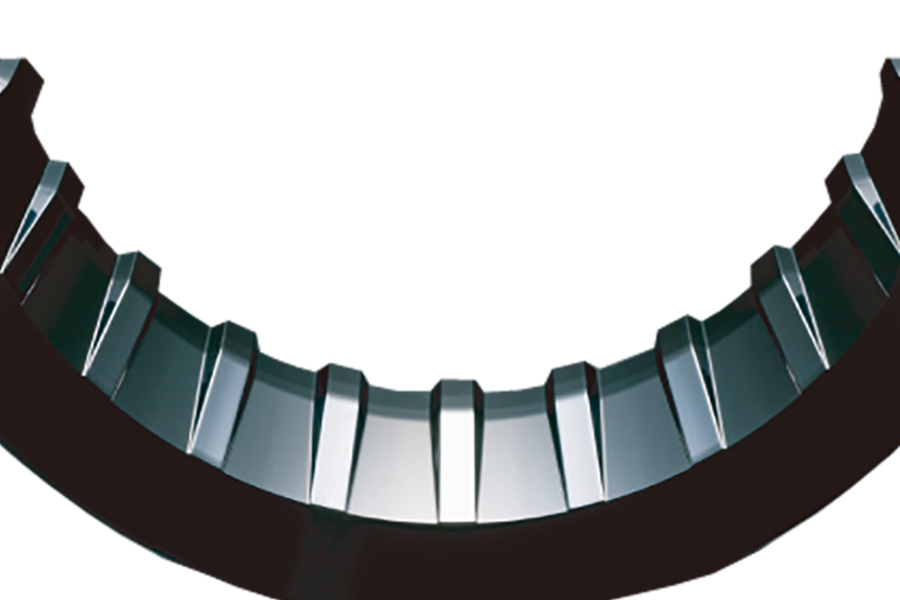

Free-Form Surfaces of Internal Gear of Plate Forging Drawing Die Parts are Finished by Grinding Only.
Internal gear grinding is the process of grinding the internal tooth profile of a cylindrical workpiece using a grinding wheel. Furthermore, the entrance of carbide dies used for drawing dies, etc., has a free-form curved surface, which could only be finished by hand polishing in the past. NAGASE's Multiprofiler enables machining of these free-form internal gear. Simultaneous 4-axis control grinding makes it possible to manufacture carbide mold parts with uniform shape and quality.
Works

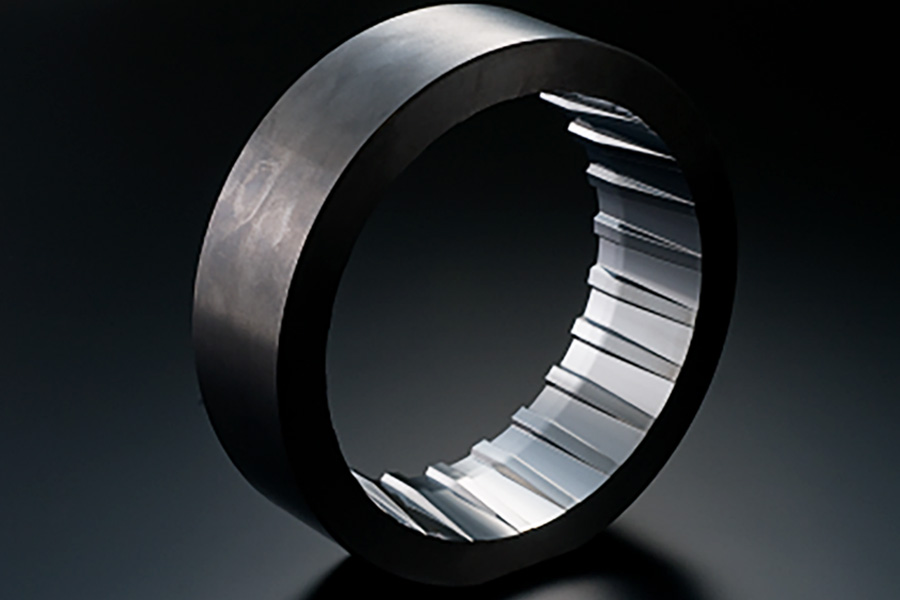

Free-Form Grinding of Internal Gear of Sheet Forging Dies
Roundness: Less than 3μm
Concentricity: Less than 3μm
Roughness: 20nmRa, 240nmRz
Material: Carbide
Size: ⌀180 x 45mm
Machine: NGA-84BS3-N5

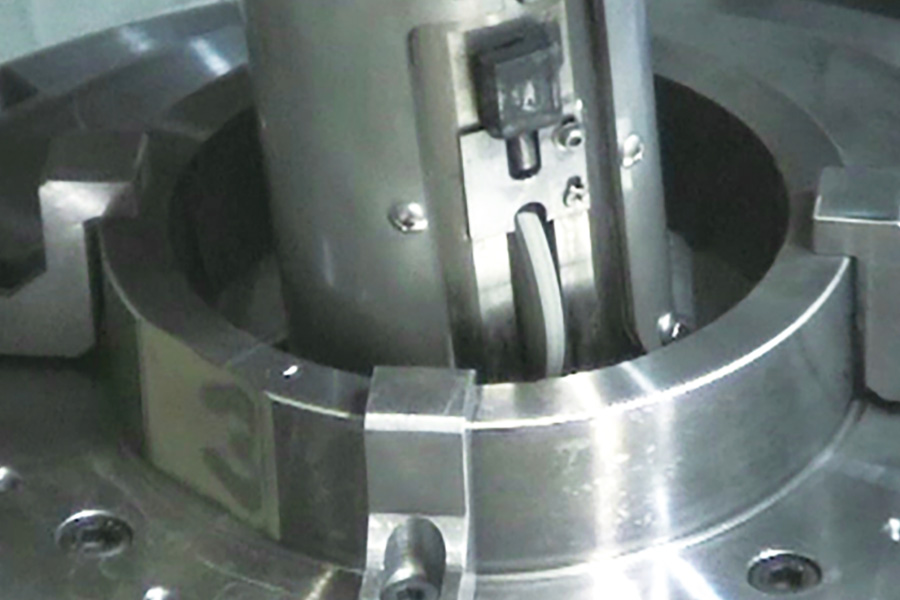

Carbide Die Grinding
Simultaneous 5-axis control grinding enables mirroring of free-form surfaces of carbide die internal gear.

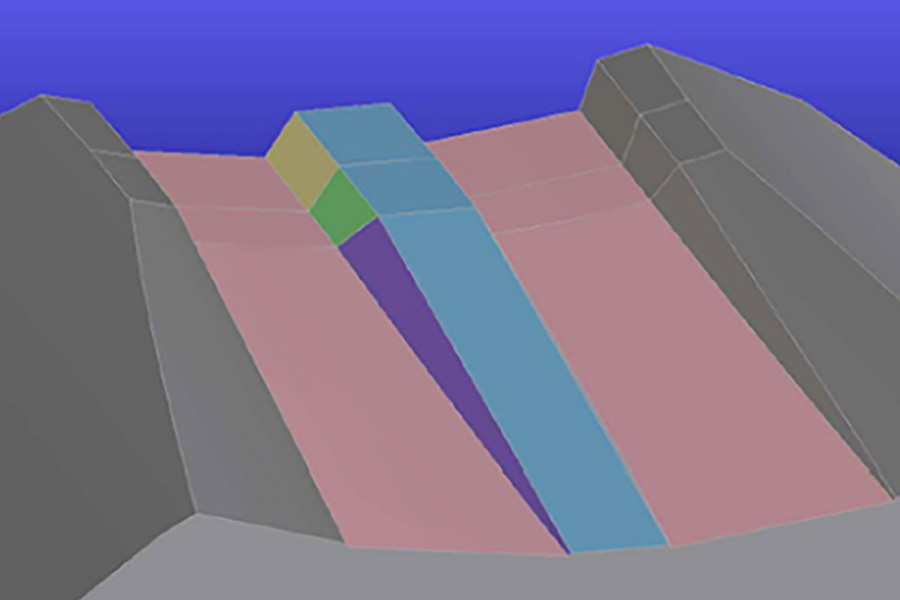

Inner Diameter Grinding of Sheet Forging Die
by Simultaneous 4-axis Control
green: 1 axis control
blue (top and inclined side)、pink (top side): 2 axes control
yellow: 3 axes control
pink (inclined side)、purple: 4 axes control
Machine: NGA-84BS3-N5

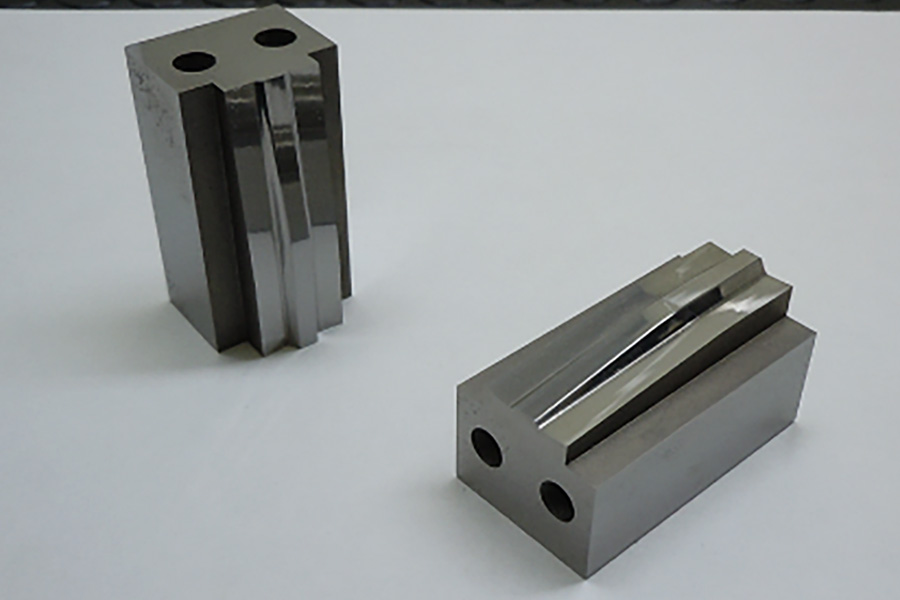

Free-Form Grinding of Internal Gear of Sheet Forging Dies
Roughness: 20nmRa, 130nmRz
Material: Carbide
Size: 45 x 25 x 25mm
Machine: NGA-84BS3-N5
